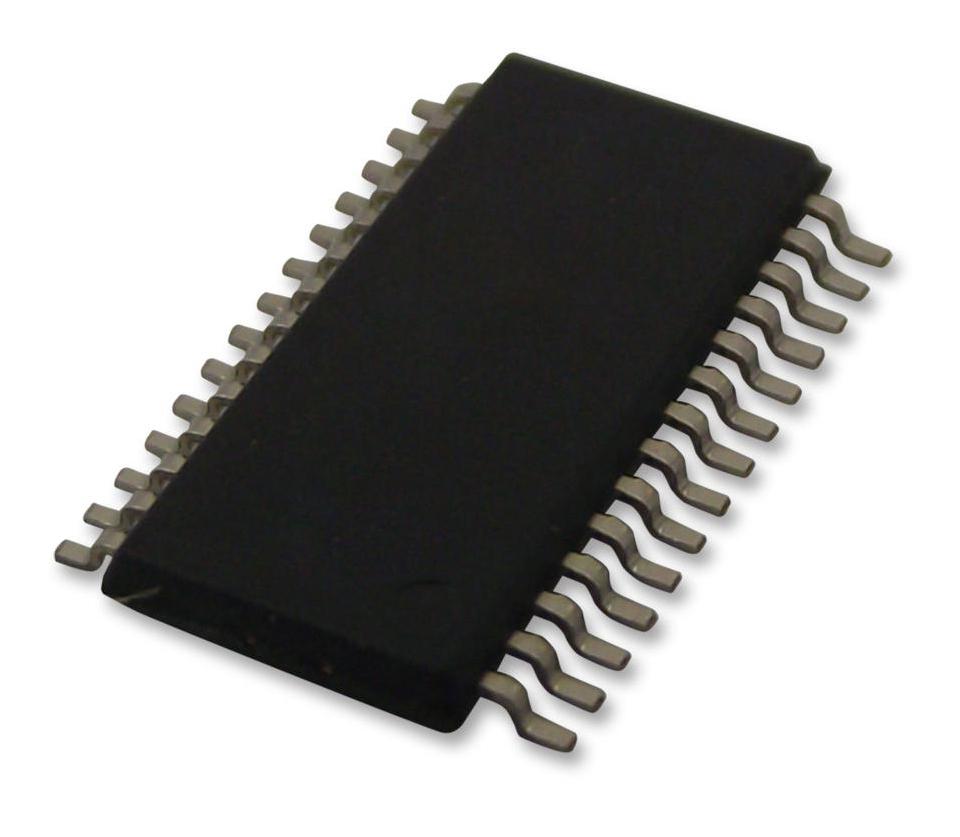

Microchip Technology MCP3913A1ESS Six-Channel Delta-Sigma ADC
The MCP3913 is a highly configurable six-channel 3V analog front end featuring delta-sigma ADCs, programmable gain, low noise, and secure firmware communication. Designed for energy metering, power monitoring, and industrial instrumentation, it offers 16/24/32-bit data formats, oversampling ratios up to 4096, and excellent linearity with low distortion. Its advanced security with CRC checks, register lock, and secure communication ensures reliable operation in noisy environments. Compatible with SPI modes 0,0 and 1,1, it supports external clocking, phase delay, and calibration for precise high-resolution measurements over a wide temperature range.
Microchip Technology MCP3913A1ESS Six-Channel Delta-Sigma ADC Specifications:
- Supply Voltage: 2.7V to 3.6V
- Resolution: 24 bits, configurable up to 32 bits
- Sampling Frequency: Up to 125 ksps
- Oversampling Ratio: 32 to 4096
- Input Voltage Range: ±1V differential, up to ±2V absolute
- Differential Voltage Reference Input: REFIN+/- with external or internal reference
- Internal Voltage Reference: 1.2V ±2%, low drift (7 ppm/°C)
- Analog Inputs: Fully differential, protected against ESD, up to ±1V
- Gain: Programmable from 1 to 32x per channel
- Power Consumption: ~0.5mA digital, 2-3mA analog depending on configuration
- SPI Interface: 20 MHz, modes 0,0 and 1,1, with CRC security
- Package options: 28-lead SSOP, 40-lead UQFN
- Operating Temp Range: -40°C to +125°C
- Security features: Register lock, CRC-16 checksum for communication and configuration integrity
- Built-in phase delay and synchronized sampling for multi-channel measurements
Buy the Buy Microchip MCP3913 Part Number MCP3913A1ESS Online
Order the Microchip MCP3913 online today to access a flexible, secure, high-resolution six-channel analog front end designed for energy monitoring, industrial instrumentation, and power measurement systems. Featuring delta-sigma ADCs with programmable gain, advanced security, and SPI communication, it ensures accurate data acquisition over wide dynamic ranges and temperature conditions. With simple integration and robust security features, the MCP3913 guarantees reliable, high-precision performance for demanding applications. Improve your measurement accuracy today with easy online ordering.
Buy Microchip MCP3913 now and experience unmatched reliability and performance in high-precision energy and power measurement applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3913A1ESS?
You can click on the BUY or RFQ button to purchase MCP3913A1ESS from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3913A1ESS?
You can download the MCP3913A1ESS datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3913A1ESS?
Microchip Technology
