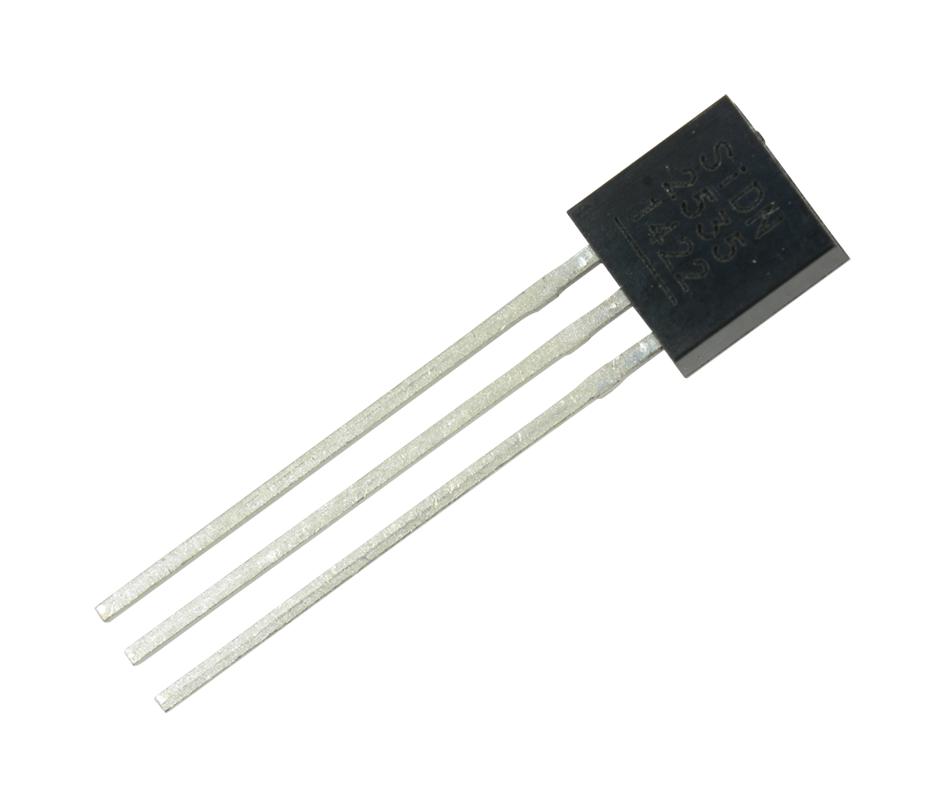

Microchip Technology DN2535N3G Depletion Mode MOSFET
The DN2535N3-G is an N-channel depletion-mode vertical DMOS FET built with an advanced vertical DMOS structure and manufactured using Supertex's reliable silicon-gate process. This device combines the power handling capabilities of bipolar transistors with the high input impedance and positive temperature coefficient typical of MOSFETs. It is inherently resistant to thermal runaway and secondary breakdown, ensuring reliable operation. The normally-on, low threshold voltage DMOS FET is ideal for a wide range of switching and amplification applications that require high breakdown voltage, high input impedance, low input capacitance, and fast switching speeds. Key features include low ON-resistance, immunity from secondary breakdown, and low leakage currents.
Microchip Technology DN2535N3G Depletion Mode MOSFET Specifications:
- Drain-to-source voltage BV,5: 350V
- Gate-to-source voltage: +20V
- Maximum operating temperature: -55°C to +150°C
- Power dissipation: 125W (TO-92), 170W (TO-220) at continuous load
- Channel type: N-channel depletion mode
- Input capacitance: 200 pF
- Gate-to-source voltage: -1.5V to 3.5V
- Static drain-to-source resistance: 17Ω at 120mA
- On-resistance (Rds(on)): 25Ω typical at 120mA
- Turn-on delay time: 10 ns
- Fall time: 20 ns
- Package options: TO-92, TO-220
- Soldering temperature: 300°C
- Reverse transfer capacitance: 1.0 pF
- Total gate charge: 4.0 nC
Buy the Supertex DN2535 U–2013 Reliable Depletion-Mode MOSFET for Industrial Applications
Order the Supertex DN2535 now for robust performance in industrial switching, amplifiers, and power supply circuits. Featuring high voltage capacity, low ON-resistance, and fast switching speeds, this N-channel depletion-mode MOSFET is ideal for engineers and technicians seeking reliable, high-efficiency components. With advanced vertical DMOS technology, it ensures minimal energy loss and thermal stability, making it suitable for demanding applications. Purchase online today to benefit from quick delivery, quality assurance, and competitive prices, ensuring your project’s success with trusted technology.
Get Supertex DN2535 today—built for precision, high voltage, and reliable long-lasting operation in switching and amplification tasks.
Frequently Asked Questions
Where can I buy Microchip Technology DN2535N3G?
You can click on the BUY or RFQ button to purchase DN2535N3G from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part DN2535N3G?
You can download the DN2535N3G datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of DN2535N3G?
Microchip Technology
