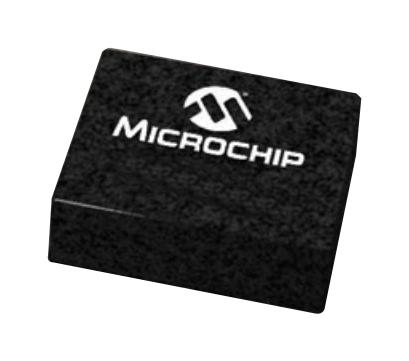

Microchip Technology DSC1001DI10240000 CMOS Oscillator
The DSC1001/3/4 are ultra-compact, low-power CMOS oscillators utilizing silicon MEMS resonators, offering exceptional stability and reliability over temperature and shock. They operate from 1 MHz to 150 MHz with supply voltages between 1.8V and 3.3V, suitable for rugged industrial, portable, and low-profile applications. These crystal-less oscillators provide pin-compatible drop-in replacements for industry-standard quartz oscillators, with high output drives of 25pF or 40pF, and are MIL-STD 883 shock and vibration resistant, RoHS, Reach SVHC, and AEC-Q100 certified.
Microchip Technology DSC1001DI10240000 CMOS Oscillator Specifications:
- Frequency Range: 1 MHz to 150 MHz
- Operating Voltage: 1.7 to 3.6V
- Temperature Range: -40°C to 105°C (Extended Industrial), -40°C to 85°C (Industrial), -20°C to 70°C (Commercial)
- Supply Current: 6 mA at 1 MHz, up to 85 mA at 70-150 MHz
- Output Load: 15 pF (DSC1001), 25 pF (DSC1003), 40 pF (DSC1004)
- Package Sizes: 2.5mm x 2.0mm x 0.85mm, 3.2mm x 2.5mm x 0.85mm, 5.0mm x 3.2mm x 0.85mm, 7.0mm x 5.0mm x 0.85mm
- Shock and Vibration Resistance: MIL-STD 883 compliant
- Certifications: RoHS, Reach SVHC, AEC-Q100 qualified
- Power Consumption: Low operating and standby current, standby <15 nA
- Input Logic Levels: High ≥ 0.75 Vpp, Low ≤ 0.25 Vpp
- Reflow Profile: Max peak temperature 260°C, ramp-up rate within 3°C/sec
- Pin Functions: Standby#, GND, VDD, Output, center pad (do not connect)
Buy the Buy Microchip DSC1001/3/4 Low-Power CMOS Oscillators Part Number DSC1001DI10240000 Online
Order the Microchip DSC1001/3/4 CMOS oscillator series online today to ensure your designs benefit from high stability, low power consumption, and rugged reliability. These crystal-less MEMS-based oscillators are perfect for industrial, consumer, and portable applications where shock resistance and stable frequency performance are critical. Available in multiple compact package options, they provide pin-compatible drop-in replacements for standard crystal oscillators, with high drive levels and proven MIL-STD shock and vibration resistance. Purchase now for quick lead times and superior system reliability.
Buy Microchip DSC1001DI10240000 now and experience unmatched reliability and performance in rugged industrial and portable electronic systems.
