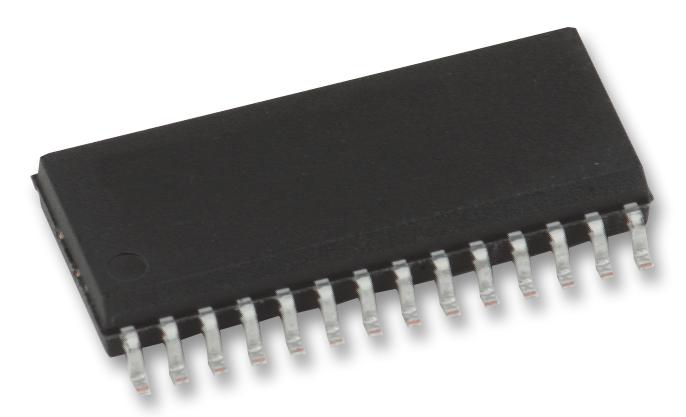

Microchip Technology DSPIC30F202030ISO Power Conversion Microcontroller
The DSPIC30F202030ISO is a high-performance 16-bit digital signal controller with advanced features including a dual 40-bit accumulators, 17x17-bit multiplier, 24-bit instruction set, multiple communication interfaces, high-speed ADC, power supply PWM capabilities, and extensive system integration options. It supports multiple timers, input capture, output compare, rich interrupt control, and sophisticated memory organization, making it ideal for power conversion, motor control, and complex digital signal processing applications in industrial and extended temperature ranges. Built on CMOS technology, it offers low power consumption and reliable operation across a wide temperature spectrum.
Microchip Technology DSPIC30F202030ISO Power Conversion Microcontroller Specifications:
- Core Architecture: Modified Harvard, 24-bit instruction word
- Instruction Set: 83 instructions with enhanced DSP capabilities
- Operation Speed: Up to 30 MIPS
- Flash Memory: 13K to 24K bytes (customizable)
- RAM: 512 bytes
- Peripheral Modules: 2 PWM generators, 4 timers, 8 input capture channels, 2 SPI, 1 I2C, UART, ADC supporting 12 channels at 2 Msps
- Timers: Timer1 (16-bit), Timer2/3 (32-bit, configurable as independent 16-bit timers or combined 32-bit)
- ADC: 10-bit, 2 Msps, multiple channel pairing, with external trigger support
- Power Supply PWM: 4x PWM generators with dead-time, phase-shift, and multiple modes
- Interrupts: Up to 35 sources with programmable priorities, vectored architecture, nesting enabled
- Clock: Up to 480 MHz PLL, internal RC tuning, oscillator switching, and fail-safe monitor
- Power Modes: Sleep, Idle, and Run with configurable wake-up sources
- Package Options: QFN, SOIC, SPDIP, TQFP, with robust thermal characteristics
- Operating Voltage: 3.3V and 5.0V with extended temperature ratings (-40°C to +125°C)
- Support: In-Circuit Serial Programming, Run-Time Self-Programming, extensive development tools
Buy the Microchip Series dsPIC30F2023 Power Conversion DSPIC: DSPIC30F2023
Experience the advanced capabilities of the Microchip dsPIC30F2023, a high-performance 16-bit DSPIC microcontroller designed for power supplies, motor control, and digital signal processing. It features a powerful 17x17-bit multiplier, dual 40-bit accumulators, high-speed 10-bit ADC with concurrent conversion pairing, multiple timers including 32-bit support, and extensive communication interfaces like SPI, I2C, and UART. Its low power CMOS technology ensures efficient operation across industrial and extended temperature ranges, making it ideal for demanding power conversion applications. Purchase online now for reliable performance and flexible system integration.
Buy Microchip dsPIC30F2023 now and unlock high-speed DSP processing, flexible power management, and robust communication interfaces for complex control systems.
Frequently Asked Questions
Where can I buy Microchip Technology DSPIC30F202030ISO?
You can click on the BUY or RFQ button to purchase DSPIC30F202030ISO from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part DSPIC30F202030ISO?
You can download the DSPIC30F202030ISO datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of DSPIC30F202030ISO?
Microchip Technology
