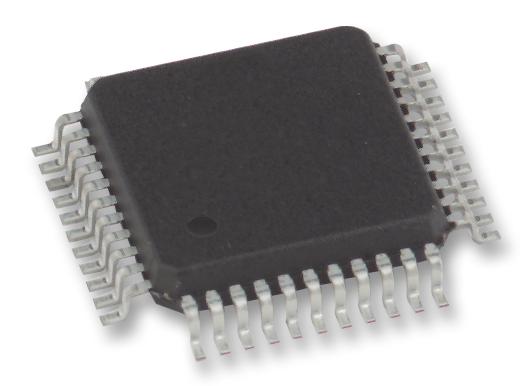

Microchip Technology HV5622PGG High-Voltage Display Driver
The HV5622 is a low-voltage, 32-channel serial-to-parallel converter with open-drain high-voltage outputs designed primarily for driving AC-electroluminescent displays. It features a 32-bit shift register, control logic, polarity, and blanking inputs, enabling efficient high-voltage current sinking for applications such as inkjet print heads, plasma panels, and large LCD matrices. With high shift register speeds up to 8 MHz, polarity inversion, and cascading capability, the HV5622 ensures flexible, reliable operation in complex display and MEMS systems, supporting multiple package options including PQFP and PLCC for versatile integration.
Microchip Technology HV5622PGG High-Voltage Display Driver Specifications:
- Supply Voltage, Vpp: -0.5V to Vpp+0.5V
- Output Voltage, Vpp: Up to 220 V
- Logic Input Levels: Vpp-2 V to Vop V
- Maximum Ground Current: 1.5A
- Operating Temperature, Ta: -40°C to +85°C
- Storage Temperature, Ts: -65°C to +150°C
- Power Dissipation: 1200 mW for PQFP and PLCC packages
- Clock Frequency: Up to 8 MHz
- Input Signal Level: High (Vin ≥ Vop-2V), Low (Vin ≤ 2V)
- High Voltage Output: Up to 220 V, with programmable polarity and blanking
- Package Types: 44-lead PQFP and PLCC with Pb-free options
- Pin Count and Functionality: Data, clock, latch enable, blanking, polarity, and high-voltage outputs
- Thermal Resistance: As per JEDEC standards for each package
- Package Marking: Includes date codes, traceability, and compliance markings
