Microchip Technology PIC16C7120P Microcontroller CMOS
The PIC16C7120P microcontroller is a low-cost, high-performance 8-bit CMOS device with integrated analog-to-digital converters, multiple oscillator options, and extensive support for power-saving modes, making it ideal for automated and embedded applications that require reliable operation with minimal external components.
Microchip Technology PIC16C7120P Microcontroller CMOS Specifications:
- Program Memory: 14 x 14 words (512 words) for PIC16C710, 1024 words for PIC16C711, 2048 words for PIC16C715
- Data Memory: 36 bytes for PIC16C710, 68 bytes for PIC16C711, 128 bytes for PIC16C715
- I/O Pins: 13 configurable pins with multiplexed features
- Voltage Range: 2.5V to 6.0V
- Operating Frequency: up to 20 MHz
- Integrated A/D Converter: 4 channels, 8-bit resolution
- Oscillator Types: Low Power Crystal, XT, HS, RC
- Power Saving Modes: Sleep mode with wake-up via external interrupts or WDT
- Timers: Timer0 with prescaler, Watchdog Timer with internal RC oscillator
- Interrupt Sources: External RBO/INT, Timer Overflow, Port change, ADC complete
- Package Options: DIP, SOIC, SSOP, CERDIP
- Power Consumption: Typically <2mA at 5V, 4 MHz
- Special Features: Code protection, in-system programmability, brown-out reset, power-up timer

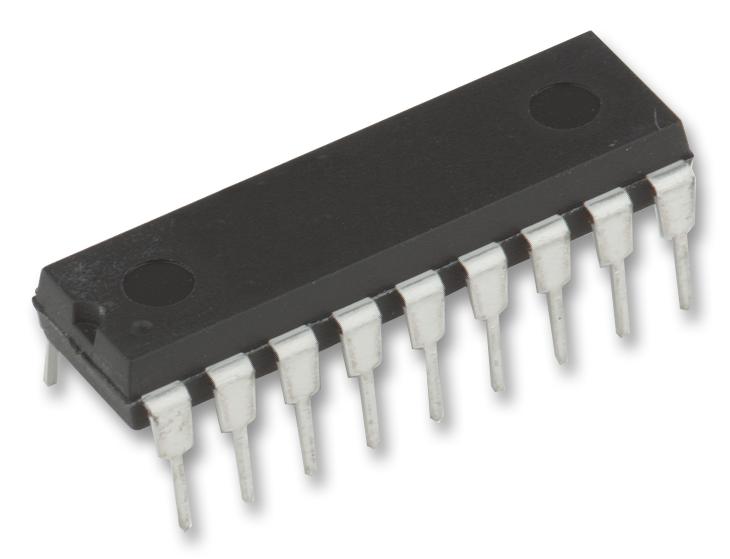

Buy the Buy Microchip PIC16C7120P Part Number PIC16C7120P Online
Enhance your project with the high-performance, low-cost Microchip PIC16C7120P microcontroller. Featuring an 8-bit CMOS core, versatile oscillator options, integrated 4-channel 8-bit ADC, and extensive power-saving capabilities, this device is perfect for embedded control, automation, and measurement systems. Its support for in-system programming and robust security features make it a reliable choice for volume production and prototype development. With wide voltage operation from 2.5V to 6.0V and a maximum frequency of 20 MHz, the PIC16C7120P delivers efficient, cost-effective control for space-constrained applications.
Order your Microchip PIC16C7120P microcontroller today and enjoy reliable, low-power performance for your embedded applications.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16C7120P?
You can click on the BUY or RFQ button to purchase PIC16C7120P from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16C7120P?
You can download the PIC16C7120P datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16C7120P?
Microchip Technology
