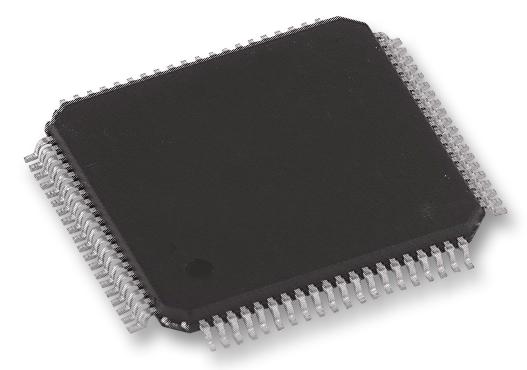

Microchip Technology LAN9352IPT Managed Ethernet Switch
The LAN9352 is a high-performance, 2-port managed Ethernet switch designed for embedded systems requiring flexibility and low system costs. It features a VLAN-aware Layer 2 switch engine supporting untagged and tagged frames, with advanced features like spanning tree, multicast filtering, QoS prioritization, and integrated IEEE 1588 hardware timestamp support. The device supports multiple host interface options including indexed, multiplexed, and an SPI/Quad SPI slave interface, enabling versatile system integration. Support for jumbo frames, automatic CRC, and flow control (full and half duplex) streamlines network operations and reduces host CPU load, making it ideal for industrial and consumer applications.
Microchip Technology LAN9352IPT Managed Ethernet Switch Specifications:
- Supported Ethernet standards: 10/100/1000 Mbps, 10/100 Mbps (Full/Half duplex), 1000Base-T, 100Base-FX via external PHY
- VLAN support with 16 active VLANs, 4096 VLAN IDs
- Layer 2 VLAN switch engine supporting tagged and untagged frames
- IEEE 1588v2 hardware timestamping with boundary and transparent clock modes
- High-performance buffer memory: 32KB total, with dynamic allocation and 512 MAC forwarding table entries
- Multiple QoS queues (4 per port), with QoS/CoS prioritization based on VLAN, MAC, IP TOS, and DiffServ
- Both Indexed and multiplexed host bus interface options supporting 8/16-bit data buses, with big/little endian support
- SPI / Quad SPI slave interface for control, supporting multiple commands at up to 80 MHz
- Configurable port and system power management, including deep sleep modes and wake-up detection (Magic Packet, WoL, link change)
- Temperature range: Commercial (0°C to +70°C), Industrial (-40°C to +85°C)
- Package options: 72-pin QFN, 80-pin TQFP-EP
- Power management with integrated regulators and extensive reset options
- Jumbo frame support up to 2048 bytes
- Multiple system interrupts for network, PHY, GPIO, and internal timers
Buy the Microchip Series LAN9352 Managed Ethernet Switch: 2-Port 10/100/1000 Mbps VLAN QoS IEEE1588 TS: LAN9352IPT
Purchase the Microchip LAN9352 managed Ethernet switch online today to upgrade your embedded network system. With support for 10/100/1000 Mbps, VLAN, QoS, IEEE 1588 timestamping, jumbo frames, and flexible host interfaces, it simplifies system design and enhances performance. Its compact package options, low power consumption, and robust features make it ideal for industrial, automotive, and consumer applications. Order now and ensure your network connectivity is reliable, efficient, and future-proof with Microchip's trusted solutions.
Buy Microchip LAN9352 managed Ethernet switch now and enjoy reliable, flexible networking with advanced VLAN, QoS, IEEE 1588 timestamping, and easy integration.
Frequently Asked Questions
Where can I buy Microchip Technology LAN9352IPT?
You can click on the BUY or RFQ button to purchase LAN9352IPT from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part LAN9352IPT?
You can download the LAN9352IPT datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of LAN9352IPT?
Microchip Technology
