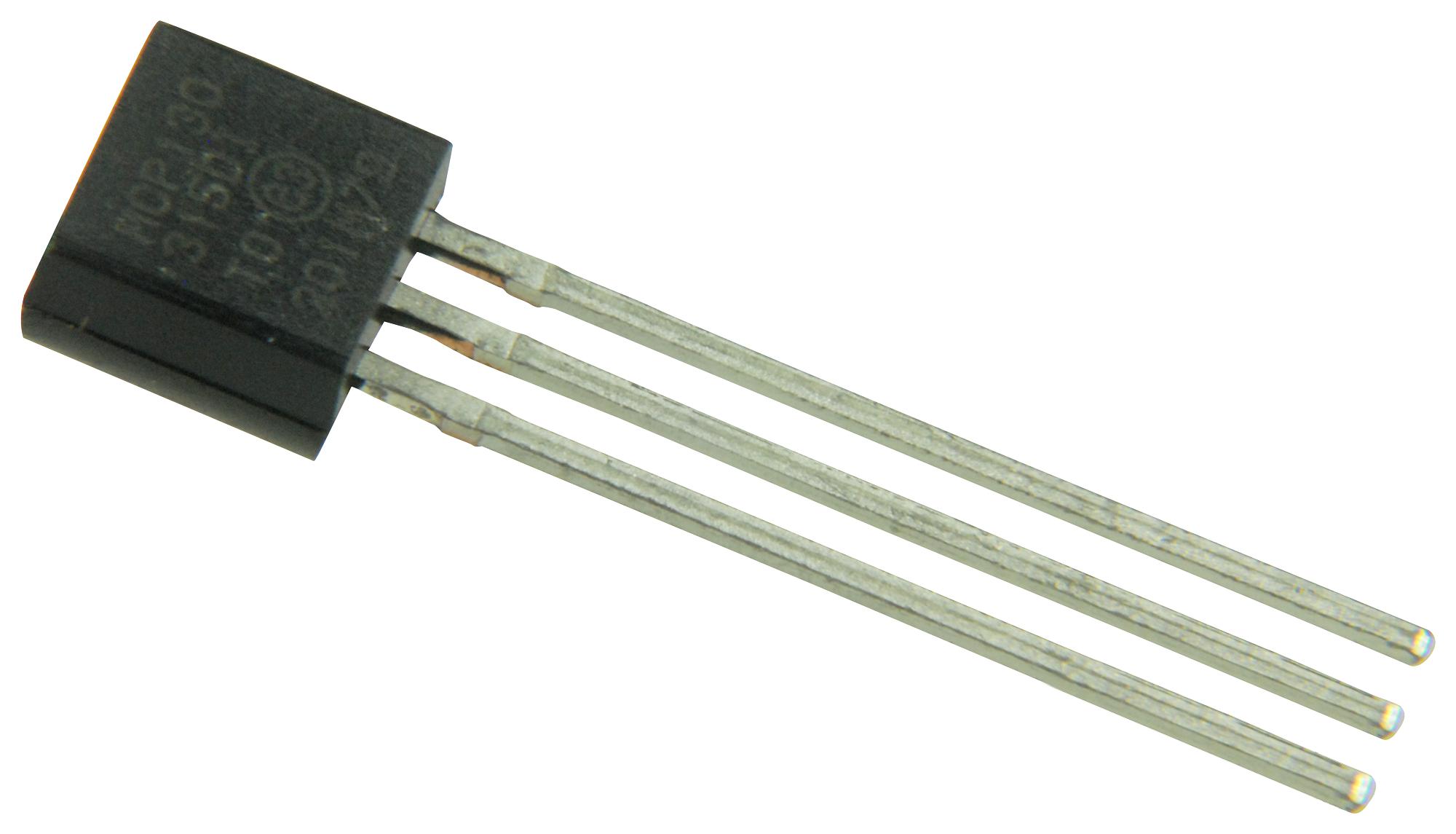

Microchip Technology MCP130315DITO Voltage Supervisory Circuit
The MCP130 is a voltage supervisory circuit designed to keep microcontrollers in reset until system voltage stabilizes. It offers seven trip points, active low RESET, open drain output, and internal pull-up resistor. Suitable for low-voltage systems, it provides reliable brown-out protection with fast response times, holding reset for approximately 350 ms. The device operates over industrial temperature ranges from -40°C to +85°C, ensuring stable performance in various embedded applications. Ideal for microcontroller reset management in power-sensitive systems, it ensures system safety and reliability during supply fluctuations.
Microchip Technology MCP130315DITO Voltage Supervisory Circuit Specifications:
- Supply Voltage Range: 1.0V to 5.5V
- Trip Points: 2.55V, 2.85V, 3.00V, 4.25V, 4.35V, 4.50V, 4.60V, 4.75V, 4.85V
- Reset Delay Time: approximately 350 ms
- Reset Threshold Accuracy: +125 mV for 5V systems, +75 mV for 3V systems
- Active Low RESET Pin
- Open Drain Output with internal pull-up (MCP130)
- Operating Current: typical 45 μA
- Temperature Range: -40°C to +85°C
- Package Options: TO-92, SOIC, SOT-23
- Active LOW Reset Triggered when Vdd drops below trip point
Buy the Microchip MCP130315 U+2013 Reliable Voltage Supervisory Circuit for Industrial Applications
Enhance your electronic systems with the Microchip Voltage Supervisory Circuit. Designed to hold microcontrollers in reset until power supply stabilizes, it features seven adjustable trip points for versatile application. Its low operating current and industrial temperature range make it ideal for reliable brown-out protection and system safety. Available in multiple packages including TO-92, SOIC, and SOT-23, the MCP130 ensures robust performance in demanding environments. Purchase online now and safeguard your projects with dependable voltage supervision for optimal system stability and integrity.
Order your Microchip MCP130315 supervisory circuit today and ensure your microcontrollers have dependable reset protection during power fluctuations.
Frequently Asked Questions
Where can I buy Microchip Technology MCP130315DITO?
You can click on the BUY or RFQ button to purchase MCP130315DITO from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP130315DITO?
You can download the MCP130315DITO datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP130315DITO?
Microchip Technology
