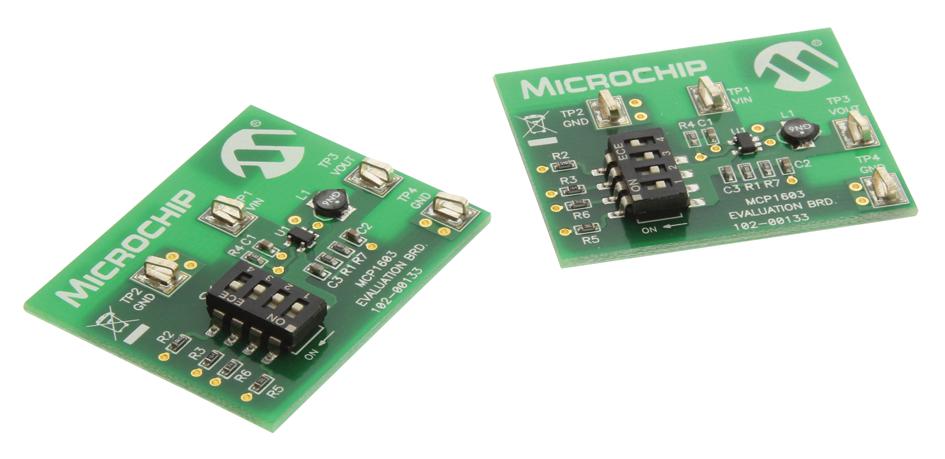

Microchip Technology MCP1603EV Buck Converter
The MCP1603 buck converter evaluation board demonstrates Microchip’s MCP1603 in a compact, low-profile design suitable for space-constrained applications. The 500mA synchronous buck regulator features both Pulse Frequency Modulation (PFM) for efficiency at light loads and PWM at heavy loads, switching at 2.0 MHz. It supports input voltages from 2.7V to 5.5V, with five preset output voltages: 0.8V, 1.2V, 1.8V, 2.5V, and 3.3V. The device includes undervoltage lockout, over-temperature protection, and achieves over 90% efficiency, making it ideal for portable and power management applications.
Microchip Technology MCP1603EV Buck Converter Specifications:
- Input Voltage Range: 2.7V to 5.5V
- Output Voltages: 0.8V, 1.2V, 1.8V, 2.5V, 3.3V
- Maximum Output Current: 500 mA
- Switching Frequency: 2.0 MHz
- Efficiency: Over 90%
- Protection Features: UVLO, over-temperature protection
- Low Shutdown Current: Approx. 0.1μA
- Package Type: TSOT, maximum height 1 mm
- Operation Modes: PFM at light loads, PWM at heavy loads
- Application Suitability: Portable devices, power management, consumer electronics, communications
Buy the Buy Microchip MCP1603 Part Number MCP1603EV Online
Purchase the Microchip MCP1603 buck converter evaluation board online to easily evaluate its adjustable voltage capabilities. It’s a compact, low profile design perfect for portable devices, power management, and consumer electronics. The evaluation board supports input voltages from 2.7V to 5.5V and provides preset output voltages including 0.8V, 1.2V, 1.8V, 2.5V, and 3.3V. With switching at 2.0 MHz, over 90% efficiency, and built-in protections, this board is ideal for various electronic applications demanding efficiency and space saving.
Buy Microchip MCP1603 part number MCP1603EV now and experience efficient, switch-mode power regulation in space-constrained applications with high reliability.
Frequently Asked Questions
Where can I buy Microchip Technology MCP1603EV?
You can click on the BUY or RFQ button to purchase MCP1603EV from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP1603EV?
You can download the MCP1603EV datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP1603EV?
Microchip Technology
