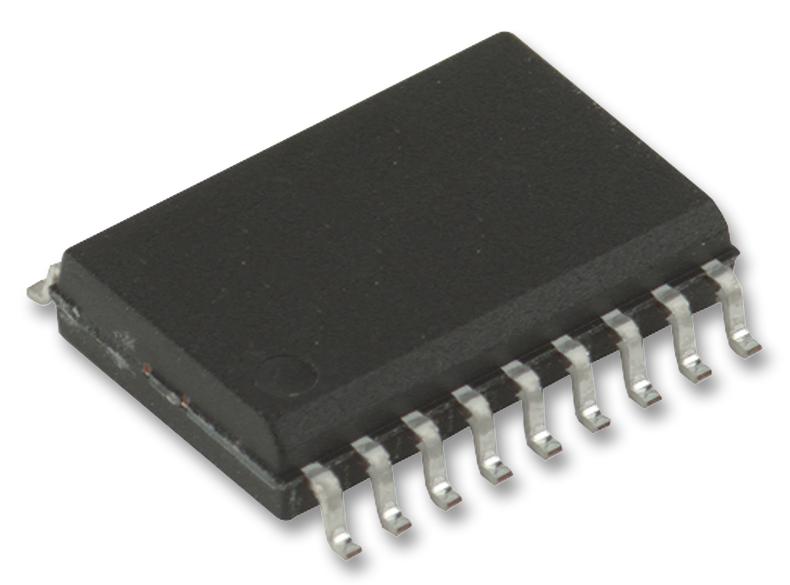

Microchip Technology MCP3464EST 16-bit Delta Sigma ADC
The MCP3464 is a high-performance, 16-bit Delta-Sigma analog-to-digital converter featuring a configurable input multiplexer, programmable gain, and multiple operating modes including continuous and one-shot conversions. It offers integrated temperature sensors, internal oscillators, and security features like CRC checksum and register locking for secure communication. Designed for precision sensor measurements such as temperature, pressure, and flow, it supports extensive customization via SPI interface, I²C-compatible communication, and various power modes, ensuring accurate data acquisition in industrial, automation, and portable instrumentation applications.
Microchip Technology MCP3464EST 16-bit Delta Sigma ADC Specifications:
- Resolution: 16-bit
- Sampling Rate: Up to 153.6 ksps
- Input Voltage Range: AVpp: 2.7V-3.6V, DVpp: 1.8V-3.6V
- Input Impedance: GAIN-dependent, 20kΩ to 510kΩ
- Power Supply: Analog AVpp: 2.7V-3.6V, Digital DVpp: 1.8V-3.6V
- Supply Current: <1.65 mA in active modes, <0.83 μA in full shutdown
- Package Options: 20-lead UQFN (3x3 mm), 20-lead TSSOP (6.4x6.4 mm)
- Operating Temperature: -40°C to +125°C
- Power-on Reset Threshold: 1.2V (digital), 1.75V (analog)
- Internal Reference: Reconfigurable, supports external references
- Security Features: CRC checksum, register lock, CRC error detection
- Communication Interface: SPI (20 MHz), compatible with Mode 0,0 and 1,1
- Internal Modules: Temperature sensor, reference inputs, burnout detection
- Conversion Modes: One-shot, continuous, scan mode
- Digital Output Format: Configurable (16-bit, 32-bit, signed/unsigned, overrange support)
Buy the Microchip MCP3464 Reliable Analog-to-Digital Converter for Industrial Applications
Experience accurate and reliable data acquisition with the Microchip MCP3464. Its advanced features include configurable channels, programmable gain, and secure SPI communication with CRC protection. Ideal for industrial sensors, temperature, pressure, and flow measurements, the MCP3464 offers a flexible architecture supporting various power modes and internal temperature sensors. Purchase online today to enhance your measurement systems with a high-performance, secure, and configurable ADC designed for demanding industrial and portable applications.
Get Microchip MCP3464 today—built for precision, security, and versatile measurement capabilities in industrial and instrumentation systems.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3464EST?
You can click on the BUY or RFQ button to purchase MCP3464EST from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3464EST?
You can download the MCP3464EST datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3464EST?
Microchip Technology
