Microchip Technology SY89323LMGTR Dual Differential Signal Translator
The SY89323L is a dual differential LVPECL-to-LVTTL translator designed for high-speed digital applications, operating at 3.3V with a maximum frequency over 275MHz. Compact and efficient, it features flow-through pinouts and internal resistors for simplified interfacing. Its ultra-small 8-pin MLF package saves space, making it ideal for clock and data signal translation in space-constrained environments. The device ensures reliable performance with differential LVPECL inputs and 24mA LVTTL outputs, defaulting to low states when inputs are open, suitable for modern communication and timing applications.
Microchip Technology SY89323LMGTR Dual Differential Signal Translator Specifications:
- Power Supply: 3.3V ±10%
- Maximum Frequency: > 275MHz
- Propagation Delay: 1.9ns typical
- Input Voltage: Differential PECL levels, compatible with 10k and 100k input levels
- Output Voltage: LVTTL, 24mA sourcing/sinking current
- Input Resistance: Internal pull-down on IN, pull-up and pull-down on /IN

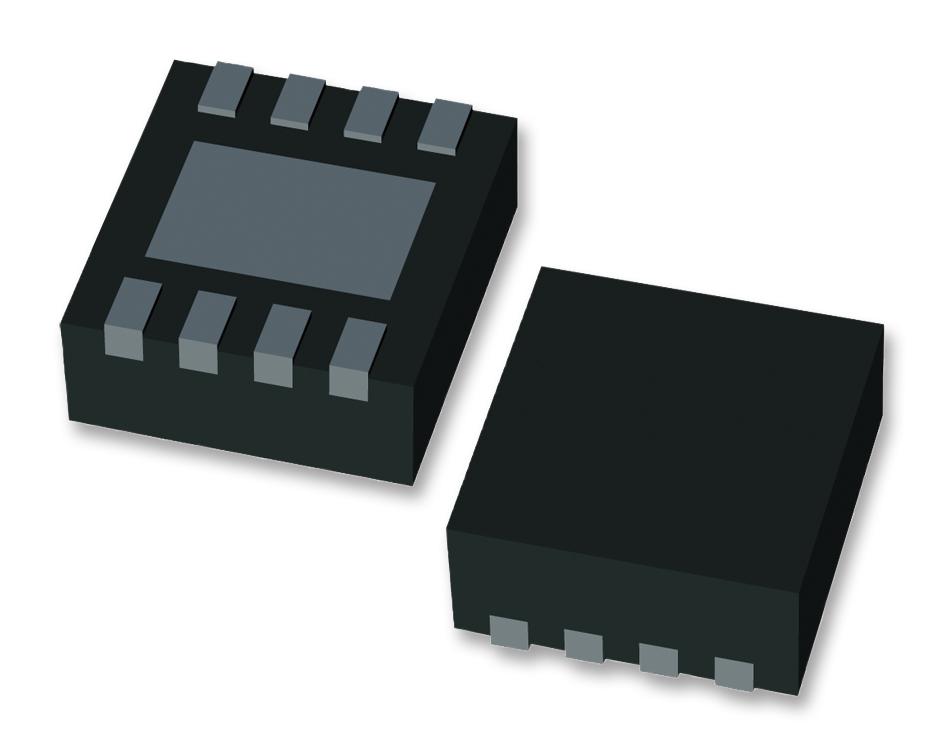

- Package: 8-pin MLF (2mm x 2mm)
- Lead Finish: NiPdAu
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Soldering Temperature: 260°C for 10 seconds
- Thermal Resistance: 500K/W (Still-Air)
- Input Pins: INO, IN4 with internal resistors; default LOW if left open
- Output Pins: NO, /IN4 with default LOW if inputs are open
- Current Consumption: 30mA typical
- Package Mechanical: Solder to ground pad for thermal dissipation
Buy the Micrel SY89323L – Reliable Differential Signal Translator for Industrial Applications
Enhance your high-speed digital systems with the Micrel SY89323L dual differential LVPECL-to-LVTTL translator. This compact device operates at 3.3V and supports frequencies over 275MHz, making it ideal for clock and data signal translation in tight spaces. Its ultra-small 8-pin MLF package, internal resistors, and default LOW states ensure reliable operation for industrial, communication, and timing applications. Purchase online now to benefit from easy integration, space-saving design, and dependable performance in your projects.
Buy Micrel SY89323L now and experience unmatched reliability and high-speed translation capabilities in space-constrained industrial environments.
Frequently Asked Questions
Where can I buy Microchip Technology SY89323LMGTR?
You can click on the BUY or RFQ button to purchase SY89323LMGTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part SY89323LMGTR?
You can download the SY89323LMGTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of SY89323LMGTR?
Microchip Technology
