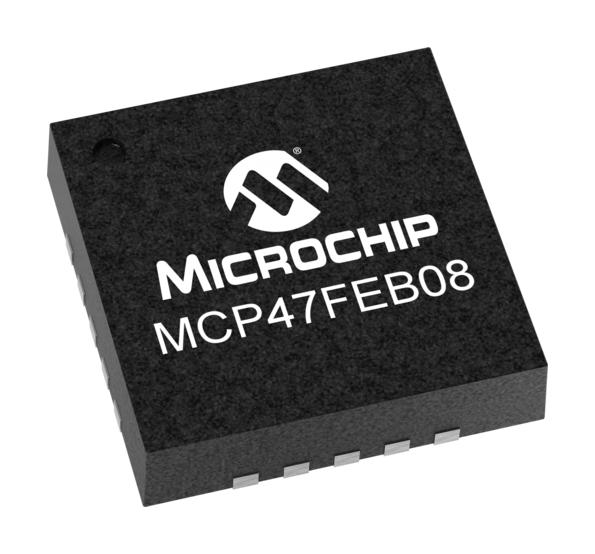

Microchip Technology MCP47FEB08EMQ Octal Voltage DAC
The MCP47FEB08 is a high-precision octal-channel voltage output Digital-to-Analog Converter featuring 8-bit resolution, nonvolatile EEPROM memory, and an I2C interface. Designed for applications requiring stable multi-channel voltage outputs with minimal power consumption, it supports flexible voltage references—internal band gap, external buffered or unbuffered Vref, and device Vpp. It includes power management features, lockable configuration bits, and supports high-speed data transfer modes up to 3.4 Mbps, making it suitable for industrial automation, calibration, sensor control, and test equipment requiring reliable, multi-channel voltage control in compact packages.
Microchip Technology MCP47FEB08EMQ Octal Voltage DAC Specifications:
- Resolution: 8-bit (256 steps)
- Number of channels: 8
- Interface: I2C (Standard up to 100kHz, Fast up to 400kHz, High-Speed up to 3.4 Mbps)
- Power Supply Voltage: 2.7V to 5.5V (full); 1.8V to 2.7V (reduced specs)
- Analog Output Range: Vgg to Vpp or Vgg to Vpp * gain (1x or 2x)
- Voltage Reference: Internal band gap (1.22V typical), external buffered/unbuffered Vref, device Vpp
- Memory: 8-bit EEPROM with auto recall, nonvolatile DAC registers
- Package: 20-lead VQFN 5x5mm or TSSOP
- Operating Temperature: -40°C to +125°C
- Features: Lockable configuration bits, WiperLock™ technology, power-down modes, high-impedance output in power-down
- Applications: Industrial calibration, sensor control, automation, precision voltage regulation
Buy the Microchip MCP47FEB08 U+2013 Reliable Octal Voltage DAC for Industrial Applications
Order the Microchip MCP47FEB08 today for robust, eight-channel voltage output with EEPROM memory, lockable configurations, and support for high-speed I2C protocols. Ideal for industrial automation, sensor calibration, and precision control applications. This compact device offers reliable performance at temperatures ranging from -40°C to +125°C, ensuring consistent operation in demanding environments.
Buy Microchip MCP47FEB08 now and experience dependable multi-channel voltage output with nonvolatile memory, lockable settings, and high-speed I2C communication.
Frequently Asked Questions
Where can I buy Microchip Technology MCP47FEB08EMQ?
You can click on the BUY or RFQ button to purchase MCP47FEB08EMQ from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP47FEB08EMQ?
You can download the MCP47FEB08EMQ datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP47FEB08EMQ?
Microchip Technology
