Microchip Technology MCP47FVB24EMQ Octal Voltage DAC
The MCP47FVB24 is a high-precision octal-channel voltage output DAC offering options with 8, 10, or 12-bit resolution. It includes nonvolatile EEPROM memory for storing output and configuration states, support for I2C interface modes up to 3.4 MHz, and features Ultra-Low Power operation. The device integrates a resistor ladder architecture with selectable voltage references, including internal band gap, external buffer, or device Vpp. Buffered output amplifiers provide rail-to-rail performance with configurable gain (1x or 2x), suited for automation, sensor calibration, and low-power applications. Power-on reset and WiperLock features enhance reliability and security for precision control tasks.
Microchip Technology MCP47FVB24EMQ Octal Voltage DAC Specifications:
- Resolution: 8, 10, or 12-bit (256, 1024, 4096 steps)
- Operating Voltage Range: 2.7V to 5.5V; 1.8V to 2.7V reduced specs
- Voltage Reference Options: Internal band gap, external buffered or unbuffered Vref, device Vpp
- Output Range: from Vgg to Vpp, Vgg to Gx Vpp, or band gap voltage scaled by gain
- Output Buffer: Rail-to-rail op amp, gain configurable (1x or 2x)
- Communication Interface: I2C up to 3.4 MHz, slave only
- Power-down Mode: configurable with resistive pull-downs (125kΩ, 1kΩ), high-impedance in power-down
- EEPROM Memory: User-programmable for output and configuration retention
- Temperature Range: -40°C to +125°C
- Package Types: VQFN-20 (5x5mm) and TSSOP-20, with exposed pad for thermal management
- WiperLock™ Security: Prevents inadvertent changes to DAC output
- Additional Features: POR/BOR reset, multiple latch pins for synchronized updates, WiperLock status bits

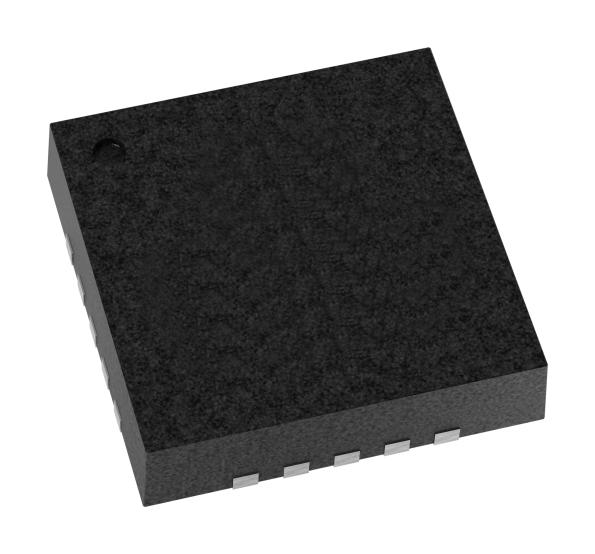

Buy the Microchip MCP47FVB24 U+2013 Reliable Voltage DAC for Industrial Applications
Enhance your industrial automation, sensor calibration, or low-power projects with the high-precision MCP47FVB24 multi-channel voltage DAC. Featuring up to 12-bit resolution, nonvolatile memory, and a fast I2C interface up to 3.4 MHz, this device delivers reliable, low-power operation. The buffer amplifiers with configurable gain ensure precise analog output, while the WiperLock™ feature secures your settings. Easy to integrate with comprehensive development tools and support documentation, the MCP47FVB24 is the ideal choice for demanding control and calibration applications.
Order your Microchip MCP47FVB24 octal voltage DAC today and give your projects the dependable high-resolution control they deserve.
Frequently Asked Questions
Where can I buy Microchip Technology MCP47FVB24EMQ?
You can click on the BUY or RFQ button to purchase MCP47FVB24EMQ from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP47FVB24EMQ?
You can download the MCP47FVB24EMQ datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP47FVB24EMQ?
Microchip Technology
