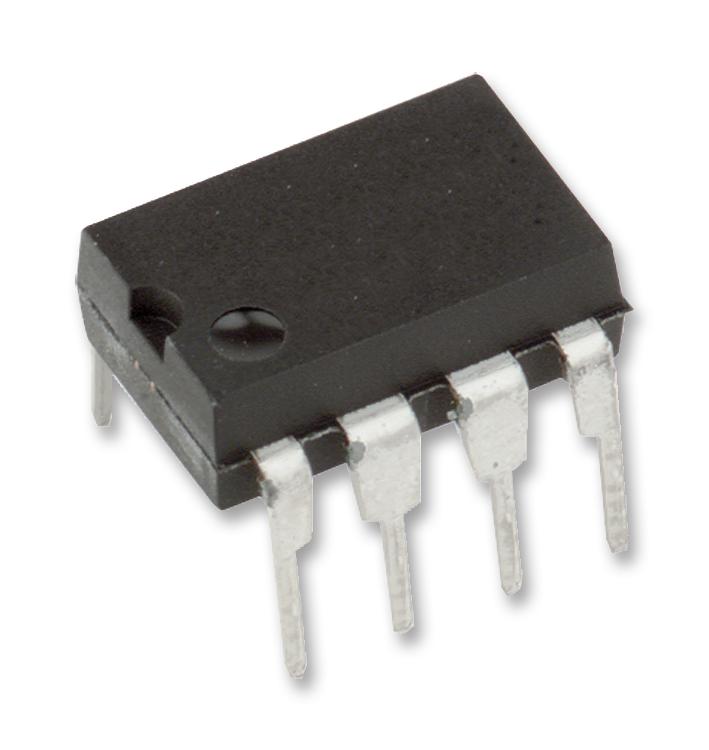

Microchip Technology TC4425CPA Dual MOSFET Driver
The TC4425 is a robust dual high-speed power MOSFET driver capable of delivering 3A peak output current. Operating from 4.5V to 18V supply voltage, it efficiently drives capacitive loads up to 1800 pF within 35 ns, with matched rise and fall times. It features low supply current, latch-up protection, ESD protection up to 4 kV, and is pin-compatible with several similar driver families. Its space-saving 8-pin DFN package makes it suitable for switch mode power supplies, line drivers, and pulse transformer applications, ensuring reliable performance in harsh electrical environments.
Microchip Technology TC4425CPA Dual MOSFET Driver Specifications:
- Peak Output Current: 3A
- Supply Voltage Range: 4.5V to 18V
- Capacitive Load Drive Capability: 1800 pF in 35 ns
- Rise/Fall Time: <40 ns (typical)
- Input Voltage Compatibility: TTL/CMOS (2.4V to 18V)
- Output Voltage: Vpp - 9.025V (high), 0.025V (low)
- Output Resistance: 3.5Ω (low), 28Ω (high)
- Power Dissipation (Ta < 70°C): 730 mW
- ESD Protection: 4 kV
- Latch-Up Protection: >1.5A reverse current
- Operating Temperature Range: -40°C to +125°C
- Package: 8-pin DFN (6x5 mm)
- Package Thermal Resistance: 33.2°C/W
- Input Hysteresis: 300 mV
- Input Current: ~±10 µA
- Switching Time: Rise <40 ns, Fall <40 ns
Buy the Microchip TC4425CPA – Reliable Dual High-Speed Power MOSFET Drivers for Industrial Applications
Enhance your power management with the Microchip TC4425CPA, a high-speed dual MOSFET driver delivering 3A peak current. Operating from 4.5V to 18V and capable of driving capacitive loads up to 1800 pF within 35 ns, it guarantees fast switching with matched rise and fall times. Its low supply current, latch-up protection, ESD handling up to 4 kV, and compact 8-pin DFN package make it ideal for switch mode power supplies, line drivers, and pulse transformers. Buy online today for reliable, efficient performance in your industrial or electronics projects.
Buy Microchip TC4425CPA now and experience unmatched reliability and performance with high peak current drive and robust protection suitable for demanding power systems.
Frequently Asked Questions
Where can I buy Microchip Technology TC4425CPA?
You can click on the BUY or RFQ button to purchase TC4425CPA from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC4425CPA?
You can download the TC4425CPA datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC4425CPA?
Microchip Technology
