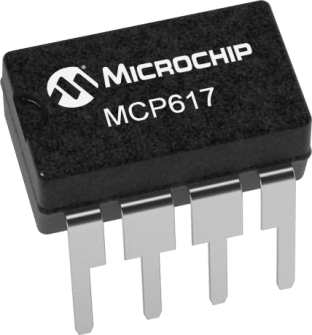

Microchip Technology MCP617IP Low-Power Precision Op Amp
The MCP617 is a precision, low-power, single-supply operational amplifier with rail-to-rail output swing, unsurpassed input offset voltage of +150 μV, and a bias current of 0.3 nA. It features unity-gain stability, excellent common-mode rejection, and is suitable for battery-powered and sensitive instrumentation applications. This op amp operates over a wide voltage range from 2.3V to 5.5V, with an industrial temperature rating of -40°C to +85°C, and is available in 8-lead PDIP, SOIC, MSOP, TSSOP, and 14-lead packages for versatile integration into various electronic systems.
Microchip Technology MCP617IP Low-Power Precision Op Amp Specifications:
- Power Supply Voltage: 2.3V to 5.5V
- Input Offset Voltage: +150 μV (maximum)
- Input Bias Current: 0.3 nA (typical)
- Input Offset Current: 20.15 nA
- Output Swing: Within 15 mV of rails (max), linear range Vss+50 mV to Vpp-50 mV
- Rail-to-Rail Output: Yes
- Temperature Range: -40°C to +85°C
- Package Types: 8-pin PDIP, SOIC, MSOP, TSSOP; 14-pin PDIP, SOIC, TSSOP
- Gain Bandwidth Product: 190 kHz (typical)
- Slew Rate: 0.8 V/μs (typical)
- Low Noise Density: 2.2 μVp_p from 0.1 Hz to 10 Hz
- Input Voltage Range: Includes ground and extends close to supply rails
- No phase reversal: Yes
- Available in single, dual, and quad configurations
- Industrial temperature operation: -40°C to +85°C
Buy the Buy Microchip MCP617IP Part Number MCP617IP Online
Purchase the Microchip MCP617IP online today to integrate a high-accuracy, rail-to-rail operational amplifier into your designs. Engineered for low offset voltage of +150 μV and bias current of just 0.3 nA, this op amp ensures precise amplification in battery-powered and sensitive measurement systems. Its wide operating voltage from 2.3V to 5.5V and industrial temperature range of -40°C to +85°C make it suitable for diverse environments. Available in various packages such as PDIP, SOIC, MSOP, and TSSOP, the MCP617IP guarantees flexible integration, consistent low-noise performance, and high-speed response for your electronic projects.
Order your Microchip MCP617IP precision low-power op amp today and enhance your battery-powered and sensor circuits with reliable performance.
