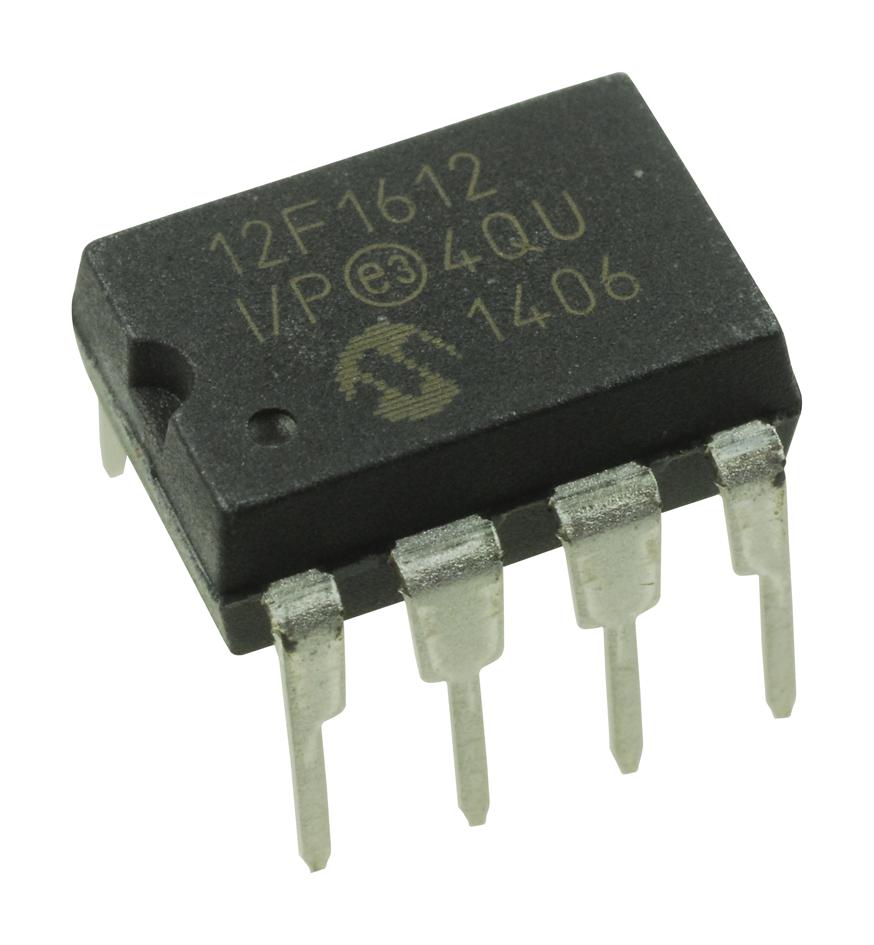

Microchip Technology PIC12F1612IP High-Performance 8-bit Microcontroller
The PIC12F1612-I/P is a high-performance, easy-to-program 8-bit microcontroller with an enhanced CMOS flash architecture, delivering instruction execution in 200ns. It includes 3.5KB of program memory, 256 bytes RAM, 6 GPIO pins, one comparator, a 4-channel 10-bit ADC, operates up to 32MHz within 2.3V–5.5V, and features a 14-bit instruction set, 16-level hardware stack, multiple interrupts, brown-out and power-on resets, internal oscillator, watchdog timer, zero cross detection, timers, capture/compare/PWM, CRC, waveform generator, and ICSP. Ideal for industrial, automotive, consumer, motor control, lighting, medical, and security applications.
Microchip Technology PIC12F1612IP High-Performance 8-bit Microcontroller Specifications:
- Program Memory: 3.5KB Flash
- Data RAM: 256 Bytes
- GPIO Pins: 6
- ADC: 4-channel, 10-bit
- Instruction Set: 14-bit
- Instruction Speed: 200ns per instruction
- Operating Voltage: 2.3V to 5.5V
- Maximum Clock Frequency: 32MHz
- Timers: Multiple including Timer0, Timer1, Timer2, Timer4, Timer6
- Peripheral Modules: Comparator, Capture/Compare/PWM, CRC, Waveform Generators, Zero Cross Detector
- Reset: Power-On Reset, Brown-Out Reset, Stack Overflow/Underflow Reset
- Oscillator: Internal oscillator, multiple clock sources including external
- Program Interface: In-Circuit Serial Programming (ICSP)
- Other Features: Watchdog Timer, low power modes, voltage references
Buy the Microchip PIC12F1612 I/P – Reliable 8-bit Microcontroller for Industrial Applications
Discover the Microchip PIC12F1612 IP microcontroller, a robust 8-bit device with 3.5KB flash, 256 bytes RAM, 6 GPIO pins, ADC, comparator, timers, PWM, CRC, watchdog, and in-circuit programming. Operating up to 32MHz at 2.3V–5.5V, it’s ideal for industrial, automotive, motor control, lighting, medical, and security applications. Its features include advanced interrupt handling, power-on and brown-out resets, internal oscillators, zero cross detection, multiple timers, and extensive peripheral modules, making it the perfect choice for reliable embedded control solutions.
Get Microchip PIC12F1612 IP today—built for precision and long-lasting durability in your industrial projects.
