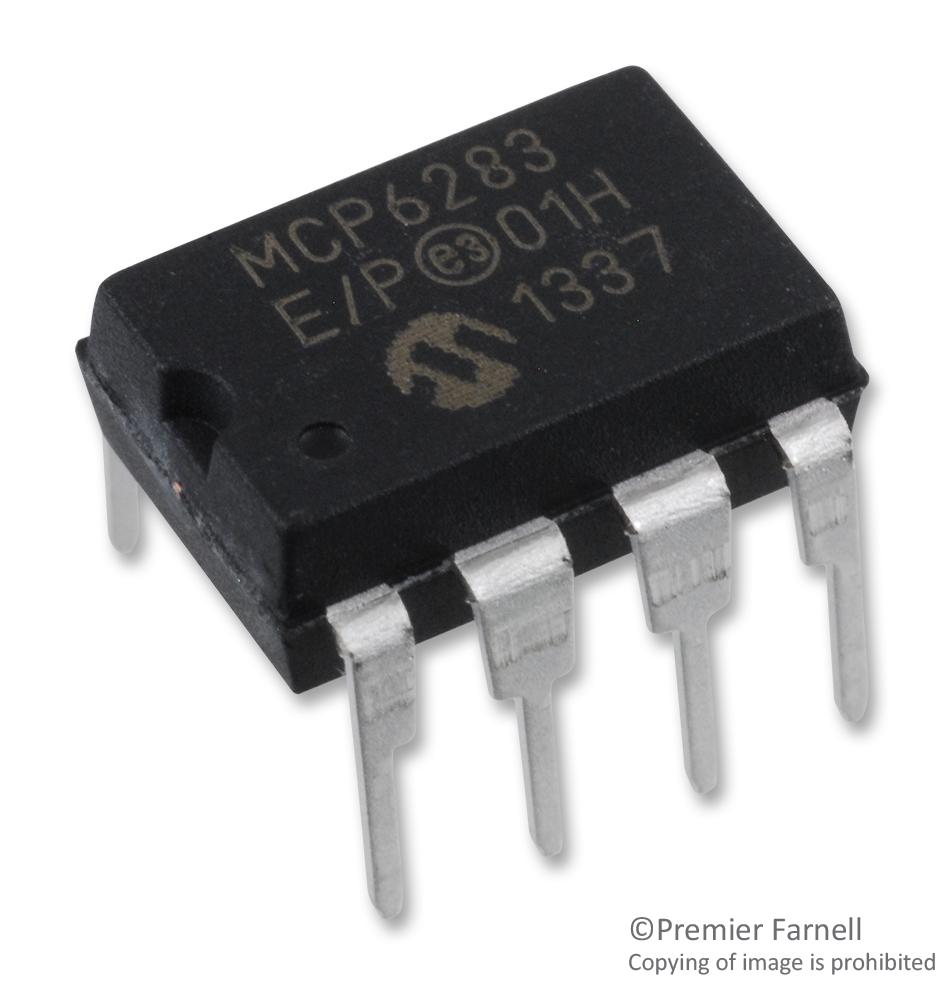

Microchip Technology MCP6283EP Precision Op Amp
The MCP6283-E/P is a precision operational amplifier designed for applications requiring wide bandwidth and low noise. It features a 5MHz gain bandwidth product and a phase margin of 65°, providing stable performance. The op-amp can operate from a single supply voltage as low as 2.2V, with a typical quiescent current of 450µA. It supports rail-to-rail input and output swing, with a common-mode input voltage range from VDD + 300mV to VSS - 300mV. Built using advanced CMOS technology, the MCP6283 family operates over -40°C to +125°C and a voltage range of 2.2V to 6V.
Microchip Technology MCP6283EP Precision Op Amp Specifications:
- Gain Bandwidth Product: 5 MHz
- Phase Margin: 65°
- Supply Voltage: 2.2V to 6.0V
- Quiescent Current: 450µA (typical)
- Rail-to-Rail Input/Output
- Common Mode Input Voltage Range: VDD + 300mV to VSS - 300mV
- Operating Temperature Range: -40°C to +125°C
- Input Offset Voltage: Max 3mV
- Common-Mode Rejection Ratio: 65dB (typical)
- Power Supply Rejection Ratio: 70dB
- Supports Chip Select for power saving
- Suitable for automotive, portable, filter, and power management applications
- Capable of stable operation at unity gain and wide temperature range
- Advanced CMOS technology ensures high accuracy and low noise
Buy the Buy Microchip MCP6283EP Part Number MCP6283EP Online
Order the Microchip MCP6283EP online and enhance your designs with a high-performance, low-noise operational amplifier. Its wide bandwidth and rail-to-rail input/output support make it ideal for automotive, portable, and power management applications. Featuring an extended temperature range from -40°C to +125°C and a supply voltage range of 2.2V to 6V, this op amp guarantees reliable operation in various environments. Easy to use and energy-efficient, it provides excellent accuracy, making it the perfect choice for engineers seeking quality and precision in their circuits.
Get Microchip MCP6283EP today—built for high precision, low noise, and extended temperature operation in your electronics projects.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6283EP?
You can click on the BUY or RFQ button to purchase MCP6283EP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6283EP?
You can download the MCP6283EP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6283EP?
Microchip Technology
