Microchip Technology AC162049 Universal Programming Module

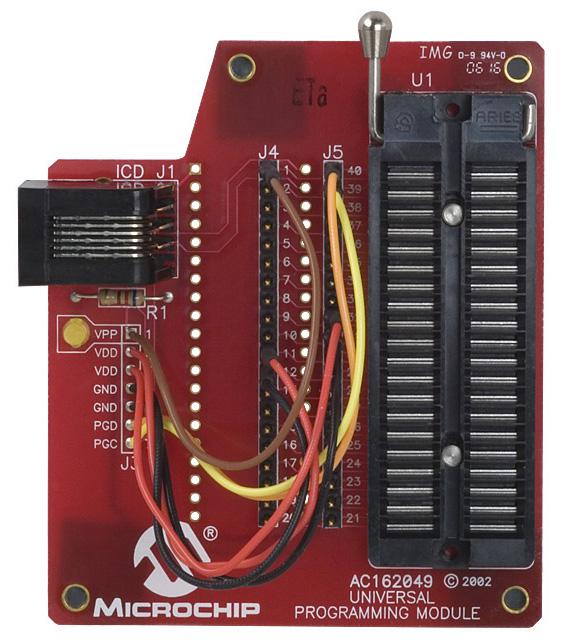

The AC162049 universal programming module (UPM) is an economical and user-friendly tool designed to support programming of flash-based microcontrollers in DIP packages using the MPLAB ICD 2 In-Circuit Debugger. It can also interface with the PICSTART Plus programmer, enabling programming of previously unsupported parts due to pin configuration limitations. The module features a ZIF socket compatible with 18, 28, and 40-pin DIP devices, along with seven jumpers that connect to two 20-pin headers labeled 1 through 40. An LED indicator (LED 1) lights during programming activity, and a push to unlock feature is included. Proper operation requires connecting an external 9V DC power supply to the MPLAB ICD 2, and the ZIF socket must be in the locked position during programming. This device is suitable for embedded design and development applications.
Microchip Technology AC162049 Universal Programming Module Specifications:
- Supported Devices: 18-, 28-, and 40-pin DIP microcontrollers
- Power Supply: External 9V DC required for MPLAB ICD 2 connection
- Socket Type: Zero Insertion Force (ZIF) with handle in locked position during programming
- Jumpers: Seven jumpers connect to two 20-pin headers labeled 1 through 40
- Indicator: LED illuminates during programming activity
- Device Handling: Support for insert/removal with zero force, handle must be in down position for insertion and up position to lock
- Compatibility: Supports programming via MPLAB ICD 2 and PICSTART Plus interface
- Additional Hardware: Requires soldered headers (Samtec TSW-120 series or equivalent) for PICSTART Plus use
- Overall Dimensions: Compatible with DIP packaged devices in standard sizes
- User Safety: Proper connection and socket handling critical for programming success
- Application: Embedded system development, microcontroller programming, device support expansion
Buy the Microchip Series UPM Universal Programming Module: AC162049
Enhance your microcontroller development with the versatile and economical Universal Programming Module supporting DIP microcontrollers. Designed for use with MPLAB ICD 2 and PICSTART Plus, it features a ZIF socket for easy device insertion and removal, along with indicator LEDs for activity monitoring. The module's configurable jumpers ensure compatibility with various microcontroller pins, making it ideal for engineering, embedded systems, and development projects. Invest in this reliable programmer for efficient, swift, and accurate microcontroller programming directly online.
Buy Microchip Series UPM AC162049 now and experience unmatched reliability and performance for embedded microcontroller programming.
