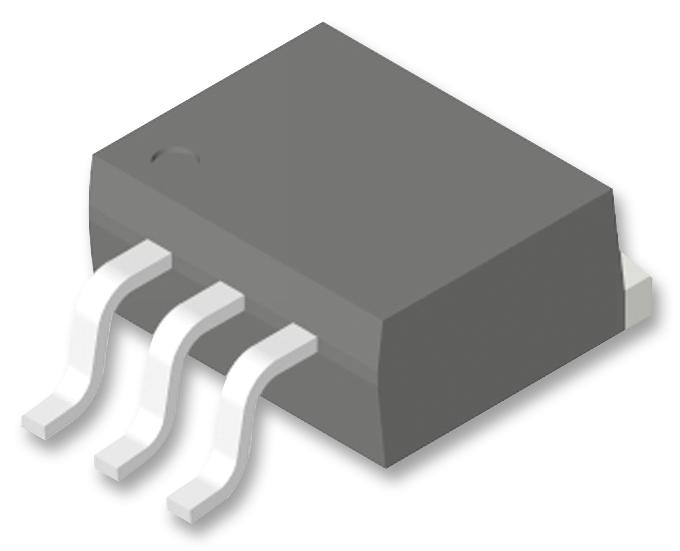

Microchip Technology MIC3915018WU Low Voltage Regulator
The MIC39150/1/2 are high-performance, low-dropout linear voltage regulators capable of delivering 1.5A of current. These devices feature an ultra-low dropout voltage of typically 375mV at full load, making them ideal for battery-powered systems, PC add-in cards, and high-efficiency power supplies. Utilizing Micrel's proprietary Super Beta PNP pass element, they offer fast transient response, low ground current of only 17mA at full load, and robust protection features including current limiting and thermal shutdown. The adjustable version (MIC39152) allows output voltage programming from 1.24V to 15.5V, accommodating various design needs. Suitable for applications requiring low voltage regulation with minimal external components, these regulators are available in TO-220, TO-263, and TO-252 packages.
Microchip Technology MIC3915018WU Low Voltage Regulator Specifications:
- Maximum output current: 1.5A
- Dropout voltage: 375mV at 1.5A
- Input voltage range: 2.25V to 16V
- Output voltage: fixed as 1.65V, 1.8V, 2.5V or adjustable 1.24V to 15.5V
- Output voltage accuracy: ±1%
- Ground current: 17mA at 1.5A load
- Output capacitor: 10µF or greater, low ESL ceramic or tantalum recommended
- Thermal shutdown and current limit protection
- Package options: TO-220, TO-263, TO-252
- Operating temperature: -40°C to +125°C
- ESR of output capacitor: less than 2Ω for stability
- Enable pin: TTL/CMOS compatible (MIC39151/2)
- Error flag: open-collector output (MIC39151 only)
- Reversed-battery and reverse-leakage protection
- Designed for microcontrollers, digital ICs, power supplies, and post-regulator applications
Buy the Micrel MIC39150 – Reliable Low Dropout Regulators for Industrial Applications
Secure your MIC39150 series low-voltage regulators online today to enhance your power management systems. These high-performance regulators deliver 1.5A of current with ultra-low dropout voltage, fast transient response, and robust protection features. Ideal for battery-powered and digital systems, they require minimal external components and ensure stable operation over a wide temperature range. With various package options, ordering online guarantees quick delivery and helps you maintain project timelines efficiently. Invest in quality power regulation now for reliable performance in your electronic designs.
Order your Micrel MIC39150 series low-voltage regulators today and ensure your projects benefit from dependable, efficient power regulation with minimal external components.
