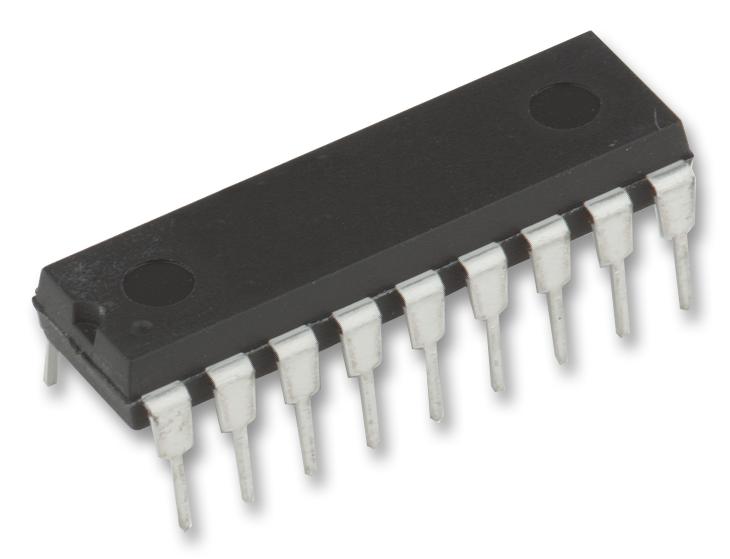

Microchip Technology PIC16F8410IP CMOS Microcontroller
The PIC16F8X series microcontrollers are high-performance, low-cost, 8-bit CMOS devices based on RISC architecture. Featuring a Harvard architecture with separate instruction and data buses, they support a 14-bit-wide instruction set with a two-stage pipeline enabling single-cycle execution for most instructions. These microcontrollers include up to 68 bytes of RAM, 64 bytes of Data EEPROM, and 13 I/O pins, suitable for motor control, sensors, security, and more. Features include in-system serial programming, power-on reset, watchdog timer, multiple oscillator options, and low power consumption. They are ideal for space-constrained applications requiring reliable, flexible control.
Microchip Technology PIC16F8410IP CMOS Microcontroller Specifications:
- Architecture: Harvard, RISC-based
- Instruction Set: 14-bit wide, 35 instructions
- Operating Speed: DC - 10 MHz (Instruction cycle: 400 ns)
- Memory: Up to 68 bytes RAM, 64 bytes Data EEPROM, 512/1024 words Flash/ROM
- Ports: Two 13 I/O pins, configurable as input/output
- Timers: Timer/Counter module (Timer0), 8-bit
- Program Counter: 13-bit wide, with paging capabilities for larger memory
- Interrupts: 4 sources including external, timer overflow, and EEPROM write complete
- Power Supply Voltage: 2.0V to 6.0V
- Oscillator Options: RC, XT, HS crystals, or external clock
- Features: In-circuit serial programming, watchdog timer, power-on reset, sleep mode, code protection
- Package Types: 18-pin PDIP, SOIC, SSOP
- Application: Automotive, appliances, sensors, security, remote controls, timing, serial I/O
- Power Consumption: Typically <2mA at 5V/4MHz, ultra-low standby current
Buy the Microchip Series PIC16F8X CMOS Microcontroller: PIC16F8410IP
Order the Microchip PIC16F8410IP microcontroller online today and elevate your embedded systems with a low-power, high-performance 8-bit RISC device. Featuring a 14-bit instruction set, up to 68 bytes RAM, 64 bytes EEPROM, multiple oscillator modes, and in-system serial programming, it’s ideal for space-constrained automation, sensors, security, and timing applications. Enjoy quick delivery, easy integration, and the flexibility of advanced peripheral features that ensure reliability and efficiency for your project’s success.
Buy Microchip PIC16F8410IP now and experience unmatched reliability and performance in space-efficient 8-bit microcontrollers with advanced features.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16F8410IP?
You can click on the BUY or RFQ button to purchase PIC16F8410IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16F8410IP?
You can download the PIC16F8410IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16F8410IP?
Microchip Technology
