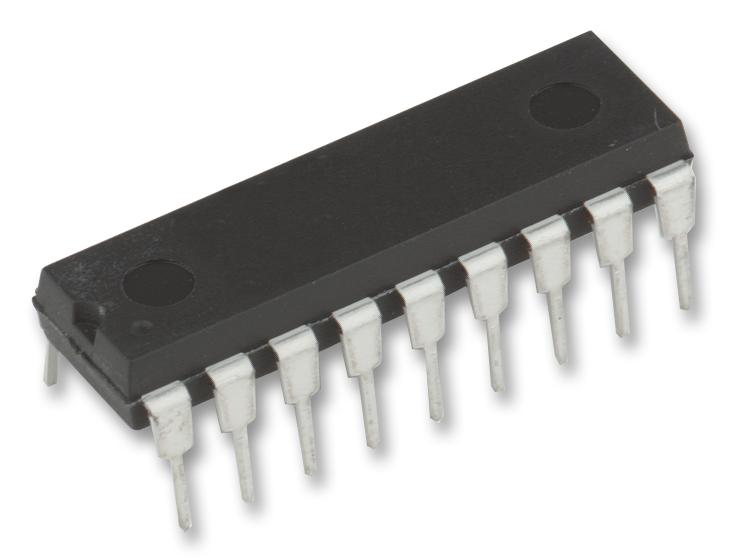

Microchip Technology PIC16C56A20P 8-bit CMOS Microcontroller
The PIC16C56A20P microcontroller is a high-performance, low-cost 8-bit CMOS device featuring a RISC architecture, 512 words of EPROM, 25 bytes of RAM, and a versatile set of peripherals. It offers a variety of oscillator options including RC, XT, HS, and LP modes, with integrated power-on reset, device reset timer, watchdog timer, and code protection features. Ideal for space-constrained applications like motor control, remote transmitters, and automation, it supports multiple package types such as PDIP, SOIC, SSOP, and CERDIP, making it adaptable for both prototype and production environments.
Microchip Technology PIC16C56A20P 8-bit CMOS Microcontroller Specifications:
- Maximum Operation Frequency: 40 MHz
- Program Memory: 512 words EPROM
- Data Memory: 25 bytes RAM
- Instruction Set: 33 instructions, single cycle (except branches)
- Oscillator Modes: RC, XT, HS, LP
- Power-on Reset (POR), Device Reset Timer (DRT), Watchdog Timer (WDT) with own RC oscillator
- I/O Ports: 12 pins (Port A, B, C), configurable as input or output
- Package Types: 18-pin PDIP, 20-pin SSOP, 28-pin SOIC, CERDIP
- Operating Voltage Range: 2.0V to 6.25V (EPROMS), Extended voltage options available for ROM versions
- Operating Temperature: 0°C to +70°C (Commercial), -40°C to +85°C (Industrial), -40°C to +125°C (Extended)
Buy the Microchip Series PIC16C56A20P: 8-bit CMOS Microcontroller
Order the Microchip PIC16C56A20P online today to benefit from a high-performance, low-cost 8-bit CMOS microcontroller. Featuring 512 words of EPROM, 25 bytes of RAM, multiple oscillator options, and integrated timers, this device is ideal for automating systems, motor control, remote transmitters, and other space-limited projects. Available in various packages like PDIP, SOIC, SSOP, and CERDIP, it offers reliable operation over a wide voltage and temperature range, ensuring durability and versatility in your design—all with easy online ordering.
Get Microchip PIC16C56A20P today—built for precision and long-lasting durability in space-saving packages and diverse oscillator configurations.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16C56A20P?
You can click on the BUY or RFQ button to purchase PIC16C56A20P from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16C56A20P?
You can download the PIC16C56A20P datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16C56A20P?
Microchip Technology
