Microchip Technology TC4426COA MOSFET Driver
The TC4426 provides 1.5A dual high-speed MOSFET driver capabilities, ideal for switching mode power supplies, line drivers, and pulse transformer drives. It features matched rise and fall times, high capacitive load drive (1000 pF in 25 ns), short delay times (40 ns), and low supply current with efficient switching performance. Equipped with ESD protection (2 kV), latch-up resistance, and operation over 4.5V to 18V, these compact 8-pin packages support high-reliability applications requiring fast switching, high peak currents, and robust electrostatic discharge immunity, making it suitable for advanced power management and switching circuits.
Microchip Technology TC4426COA MOSFET Driver Specifications:
- Peak Output Current: 1.5A
- Supply Voltage Range: 4.5V to 18V
- Rise and Fall Times: 40 ns (typical)
- Delay Time: 40 ns (typical), 60 ns (max)
- Load Drive Capability: 1000 pF in 25 ns
- Output Resistance: 7Ω (typical)
- Input Voltage High: 2.4V min, Low: 0.8V max
- ESD Protection: 2.0 kV
- Latch-up Protected: Up to 0.5A reverse current
- Operation Temperature Range: -40°C to +125°C
- Package Types: 8-Pin MSOP, 8-Pin DFN-S, 8-Pin PDIP, 8-Pin SOIC
- Storage Temperature: -65°C to +150°C
- Junction Temperature: +150°C
- Thermal Resistance: 33.2°C/W (DFN-S), 155°C/W (SOIC), 206°C/W (MSOP), 125°C/W (PDIP)

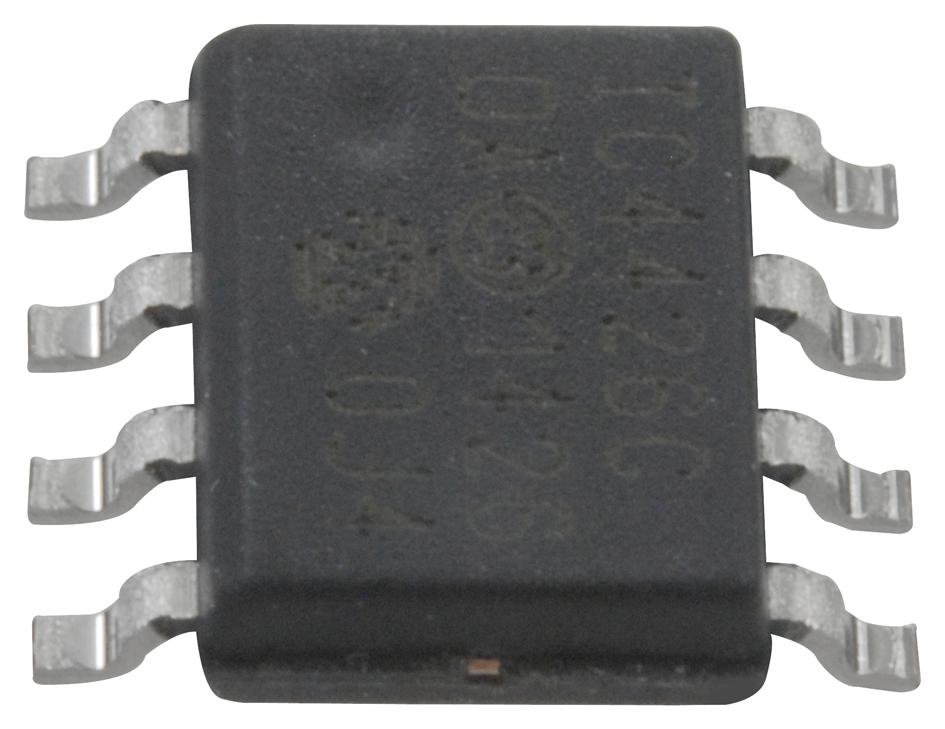

Buy the Buy Microchip TC4426 Part Number TC4426COA Online
Order the Microchip TC4426COA online today to benefit from fast switching responses, high current drive capability, low power consumption, and excellent electrostatic discharge protection. This high-speed MOSFET driver is suitable for switching power supplies, line drivers, and pulse transformer applications. With a broad voltage range of 4.5V to 18V, low delay times, and compact package options, it ensures reliable performance in industrial and automation systems. Experience seamless online purchasing and enhance your electronics projects with this versatile and durable component.
Buy Microchip TC4426COA now and enjoy high-speed switching with 1.5A output, robust protection, and versatile package options for your power circuits.
Frequently Asked Questions
Where can I buy Microchip Technology TC4426COA?
You can click on the BUY or RFQ button to purchase TC4426COA from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC4426COA?
You can download the TC4426COA datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC4426COA?
Microchip Technology
