Microchip Technology TC4432CPA High-Speed MOSFET Driver
The TC4432CPA is a high-speed, 30V MOSFET driver capable of sourcing up to 1.5A peak current and designed for efficient power management in switching applications. It features low output impedance, reverse current handling, and undervoltage lockout protection, making it ideal for small motor drives, power MOSFETs, and bipolar transistor control. Its compact 8-pin PDIP package offers robust ESD and latch-up protection, ensuring reliable performance in demanding environments. The device operates over a temperature range of -40°C to +125°C with a supply voltage of 4.5V to 30V, making it suitable for industrial and consumer applications where switching speed and power efficiency are critical.
Microchip Technology TC4432CPA High-Speed MOSFET Driver Specifications:
- Supply Voltage Range: 4.5V to 30V
- Peak Output Current: 1.5A
- Output Resistance: 7 Ohms
- Output Voltage: Vpp - 1.0 to 1.2 V (high), 0.025 V (low)
- Switching Times: Rise 60 ns, Fall 70 ns
- Temperature Range: -40°C to +125°C
- Junction Temperature: +150°C
- Overall Package: 8-Pin PDIP
- ESD Protection: 4 kV
- Reverse Current Handling: >300 mA
- Power Dissipation (Ta < 70°C): PDIP 625 mW
- Package Dimensions: Length 4.9 mm, Width 3.9 mm, Height 1.75 mm
- Ground Pins: Shorted for proper operation
- Lockout Feature: Undervoltage lockout activates below 8.4V
- Dropout Voltage: 7V
- Input Voltage (Logic '1'): > 2.4 V
- Input Voltage (Logic '0'): < 0.8 V

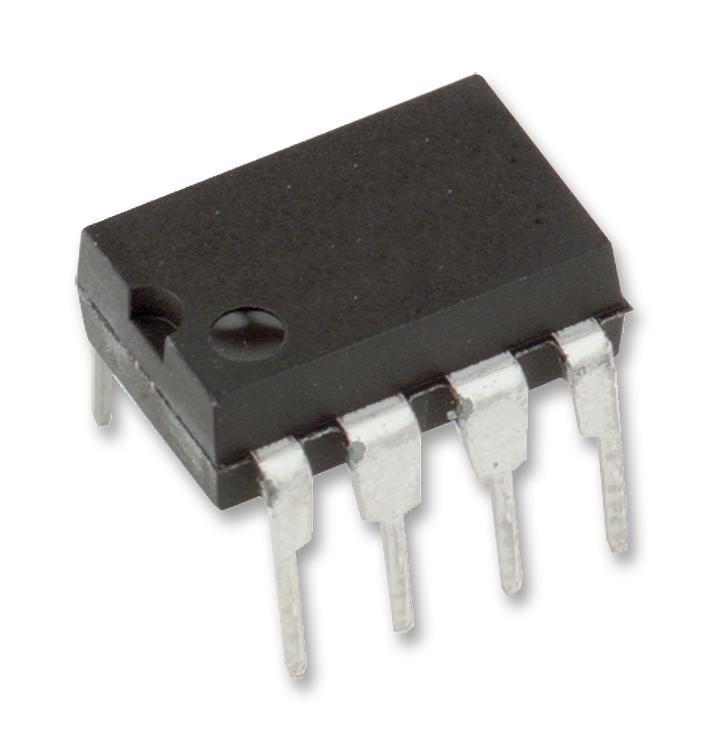

Buy the Buy Microchip TC4432CPA High-Speed 30V MOSFET Driver Part Number TC4432CPA Online
Get the Microchip TC4432CPA high-speed 30V MOSFET driver online today. It offers 1.5A peak sourcing current, low output impedance, and excellent reverse current handling. Its compact 8-pin PDIP package ensures easy integration into your circuits, providing robust protection against ESD and latch-up. Designed for efficient switching in motor drives, power MOSFETs, and transistor control, this device operates over a wide temperature range up to 125°C. Order now to enhance your power management capabilities with a reliable, high-performance driver.
Order your Microchip TC4432CPA 30V MOSFET driver with fast switching and reliable reverse current protection today and optimize your power switching projects.
Frequently Asked Questions
Where can I buy Microchip Technology TC4432CPA?
You can click on the BUY or RFQ button to purchase TC4432CPA from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC4432CPA?
You can download the TC4432CPA datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC4432CPA?
Microchip Technology
