Microchip Technology TC9402CPD Voltage Converter
The TC9402CPD is a low-cost, precision voltage-to-frequency and frequency-to-voltage converter utilizing CMOS technology. It accepts a variable analog input signal and produces a linearly proportional pulse train output or voltage, suitable for data acquisition, motor control, and phase-locked loops. The device operates over a wide supply voltage range of +8V to +15V, with high linearity and stability, and requires minimal external components for a complete system. Compact 14-pin packages make it ideal for space-constrained applications requiring accurate frequency and voltage conversion.
Microchip Technology TC9402CPD Voltage Converter Specifications:
- Package Type: 14-Pin Plastic DIP/PDIP
- Supply Voltage: +8V to +15V
- Input Voltage Range: 0 to 10 V (full scale)
- Linearity: 0.05% (F/V), 0.25% (V/F)
- Frequency Range: DC to 100 kHz
- Output Voltage: Proportional to input frequency/voltage
- Power Dissipation: 27 mW (Typ.)
- Gain Temperature Stability: +25 ppm/°C (Typ.)
- Operating Temperature Range: 0°C to +70°C
- Storage Temperature Range: -65°C to +150°C
- Output Pin: Voltage output or pulse train
- Measurement Applications: Data acquisition, motor control, phase-locked loops
- Package Dimensions: 14-pin PDIP, length ≈ 0.76 inches
- Absolute Max Ratings: Vop - Vss, Storage -65°C to +150°C

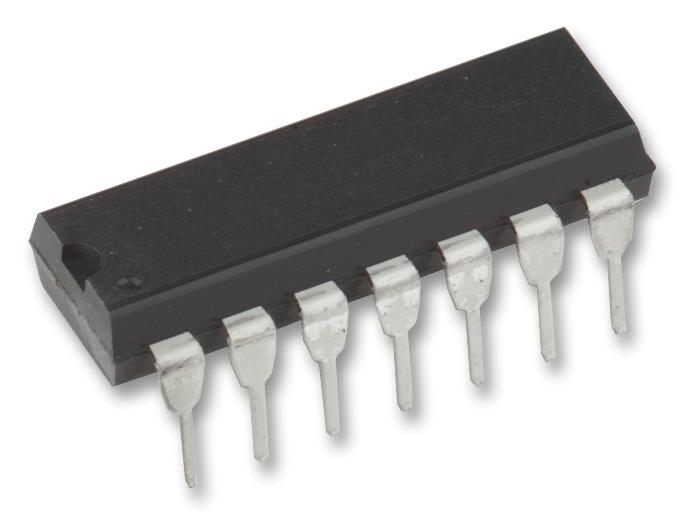

Buy the Buy Microchip TC9402CPD Part Number TC9402CPD Online
Order the Microchip TC9402CPD voltage-to-frequency and frequency-to-voltage converter online today. With CMOS technology, it offers high linearity, wide supply voltage range, and minimal external components. Its compact 14-pin package makes it ideal for space-constrained applications like data acquisition, motor control, and phase-locked loops. Achieve accurate, stable, and reliable signal conversion suited for microprocessors and instrumentation. Purchase now and enhance your electronic designs with this versatile, high-performance device promising excellent accuracy and stability.
Buy Microchip TC9402CPD now and experience unmatched reliability and high-precision voltage-frequency conversion for your embedded systems.
Frequently Asked Questions
Where can I buy Microchip Technology TC9402CPD?
You can click on the BUY or RFQ button to purchase TC9402CPD from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC9402CPD?
You can download the TC9402CPD datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC9402CPD?
Microchip Technology
