Microchip Technology VP0109N3G P-Channel MOSFET
This P-Channel Enhancement-Mode Vertical DMOS FET features a silicon-gate structure with low on-resistance, high thermal stability, and fast switching speeds, making it suitable for motor controls, power supplies, converters, and amplifiers. Its high input impedance, high breakdown voltage, and integral source-drain diode ensure reliable performance in switching applications. The device operates at voltages up to -90V, with a maximum drain current of -500mA. It is housed in a lead-free TO-92 package, supporting temperatures from -55°C to +150°C, with a maximum power dissipation of 1.0W.
Microchip Technology VP0109N3G P-Channel MOSFET Specifications:
- Drain-to-source voltage BV ds: -90V
- Drain-to-gate voltage BV dg: Not specified
- Gate-to-source voltage: ±20V
- Maximum drain current: -500mA
- Power Dissipation: 1.0W
- Operating temperature: -55°C to +150°C
- Thermal Resistance: 132°C/W
- Package: TO-92 (lead-free, RoHS compliant)
- On-state resistance Rds(on): 8.0Ω typical at -10V Vgs, 500mA
- Gate threshold voltage: -1.5V to -3.5V
- Capacitances: Cgs ~45-60pF, Coss ~22-30pF
- Switching delay times: ~4-6ns turn-on, ~8-12ns turn-off
- Diode forward voltage: ~1.2-2.0V at 1.0A
- Maximum pulse drain current: Not specified
- Maximum repetitive avalanche energy: Not specified

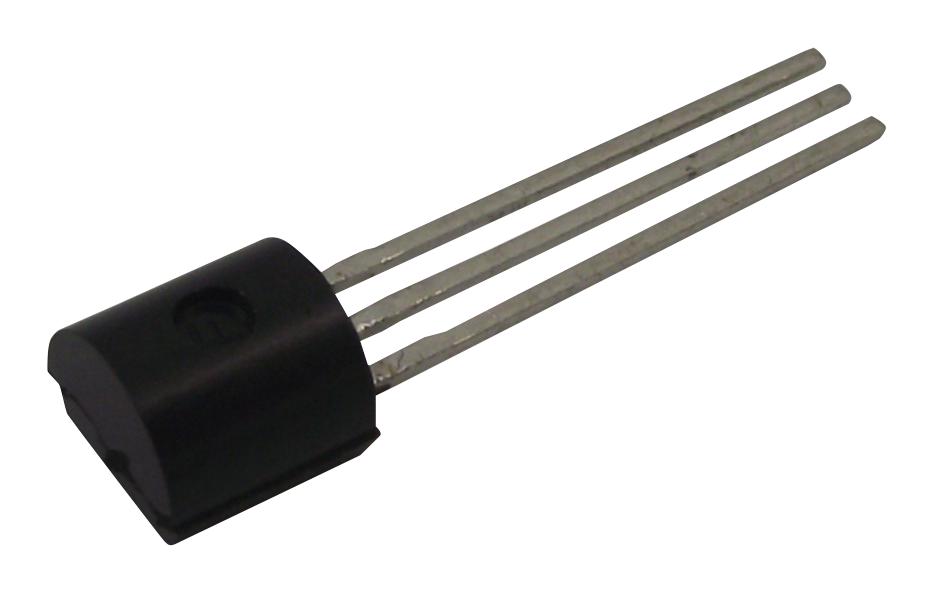

Buy the Supertex Series VP0109 P-Channel Enhancement-Mode Vertical DMOS FET: VP0109N3G
Experience robust switching performance with the Supertex VP0109N3G P-Channel MOSFET, ideal for motor controls, power supplies, and converters. Its high voltage capacity of -90V, low Rds(on), and fast switching speeds ensure efficiency and reliability in your electronic projects. Packaged in a lead-free TO-92 package, it operates at temperatures from -55°C to +150°C, supporting high thermal stability and thermal management. Perfect for engineers seeking durable, high-performance MOSFETs for demanding applications, with easy paralleling and integral diode features for seamless integration.
Get Supertex VP0109N3G today—built for precision, low on-resistance, and reliable high-voltage switching in demanding applications.
