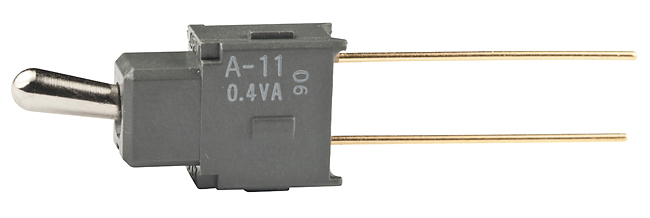

NKK Switches A11JW Subminiature Toggle Switch
This is a subminiature toggle switch designed for precision and compact applications. It features reliable operation suitable for various electronic devices and control panels.
NKK Switches A11JW Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC between contacts and case for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Operating Force: 1.47N (momentary); 1.18N (maintained)
- Temperature Range: -30°C to +85°C
- Material: Glass fiber reinforced polyamide, nickel-plated brass
- Environmental Resistance: 90-95% humidity for 240 hours @ 40°C, shock resistance 50G
- Soldering: Wave soldering recommended, manual soldering profile B, automated cleaning compliant
Buy the NKK Series A Toggle Switch: A11JW
Purchase the NKK Series A toggle switch now online to benefit from its space-saving design, long electrical and mechanical life, and excellent environmental resistance. Perfect for control panels, electronic devices, and precision applications, this switch offers high reliability, easy soldering, and contamination protection. Get your switch today to enhance your project’s durability and operational stability while enjoying fast delivery and competitive prices. Ideal for low-voltage, low-current logic circuits, ensuring safe and dependable operation.
Order your NKK Series A toggle switch today and ensure reliable switching performance in your electronics and control systems.
Frequently Asked Questions
Where can I buy NKK Switches A11JW?
You can click on the BUY or RFQ button to purchase A11JW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A11JW?
You can download the A11JW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A11JW?
NKK Switches
