NKK Switches B15JV Miniature Toggle Switch
A compact, high-reliability toggle switch tailored for logic-level applications, featuring static discharge protection, sealed construction, and high operational durability. Suitable for low-voltage, low-current circuits, it offers precise actuation with an award-winning contact mechanism ensuring stable connectivity and reliability. Designed with space-saving dimensions, it includes options for locking levers and panel seal mounting, meeting IP65 standards. Its construction uses durable materials like nickel-plated brass and insulating plastics, ensuring performance in various environmental conditions and simplifying PCB mounting, soldering, and cleaning for professional electronic assembly.
NKK Switches B15JV Miniature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC min for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (long paddle, momentary), 1.18N (maintained)
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Nickel-plated brass, carbon-polyamide, nitrile rubber, glass fiber reinforced polyamide, phosphor bronze
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours at 40°C
- Vibration: 10-55Hz with 1.5mm amplitude, 2 hours in each direction
- Shock: 50G acceleration in multiple directions
- Mounting Torque: 30-3.98 lb-in (threaded bushing)
- Soldering: Wave and manual soldering approved, automated cleaning
- Standards & Certifications: UL recognized, with UL9AV-0 flammability rating, not UL or CSA certified for the entire product.

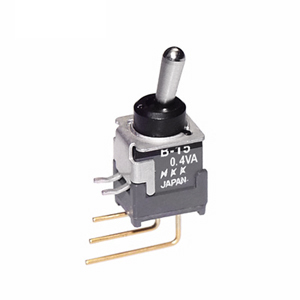

Buy the Buy NKK Toggle Switch Part Number B15JV Online
Purchase NKK’s miniature toggle switch B15JV online today for reliable and precise switching in electronic circuits. Crafted for durability, its sealed, static-proof design simplifies assembly and maintenance. Ideal for space-constrained applications, it features rugged materials ensuring consistent performance in tough environments. With easy PCB mounting options and compliance with industry standards, this switch offers excellent value. Don’t miss the opportunity to enhance your electronics with a compact, high-quality toggle switch—order now for fast delivery and professional support.
Get NKK B15JV today—designed for precision control in compact electronic devices and built for long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches B15JV?
You can click on the BUY or RFQ button to purchase B15JV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B15JV?
You can download the B15JV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B15JV?
NKK Switches
