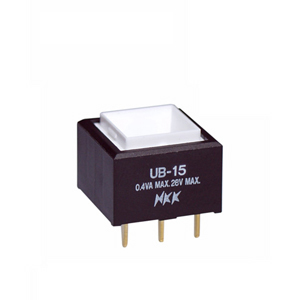

NKK Switches UB15SKG03N Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for printed circuit board (PCB) mounting and soldering applications. Suitable for control panels and user interfaces requiring a compact and easy-to-operate button with illumination.
NKK Switches UB15SKG03N Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole SPDT
- Mounting Type: PCB Mounting, Snap-in
- LED Colors & Specifications: Bright red, amber, green, white, blue with integral LED; Forward Voltage: 1.85V to 3.2V; Max Current: 20-30mA
- Electrical Ratings: 5A @ 125/250V AC, 0.4VA @ 28V DC; Resistance: Silver contacts 50 milliohms, Gold contacts 100 milliohms
- Environmental: Operating Temperature Range: -25°C to +50°C for Illuminated; Humidity 95% for 96 hours; Vibration and Shock resistance as per standards
- Materials & Finishes: Housing/Bezel: UL94V-0 polyamide; Contacts: Silver alloy or gold plating; Terminals: Solder lug, PC board
- Physical Dimensions: Dimensions vary with model, typical height approximately 24mm, cap size square or rectangular, panel thickness 0.039” to 0.126”.
- Standards & Certifications: UL recognized, CSA certified (order with marking), compliant with flammability standards
Buy the Buy NKK Switches Low Profile Pushbutton Part Number UB15SKG03N Online
Enhance your control systems with the compact and reliable low-profile illuminated pushbutton switch. Designed for PCB mounting, it offers easy operation, bright illumination, and certified safety standards. Perfect for space-constrained control panels or user interfaces that demand durability and efficiency. Easy to install with snap-in mounting, it supports a variety of LED colors and ratings to match your project needs. Order online now and enjoy fast delivery of this versatile, essential control component.
Buy NKK Switches UB15SKG03N now and experience unmatched reliability and space-saving performance for your control panel applications.
Frequently Asked Questions
Where can I buy NKK Switches UB15SKG03N?
You can click on the BUY or RFQ button to purchase UB15SKG03N from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15SKG03N?
You can download the UB15SKG03N datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15SKG03N?
NKK Switches
