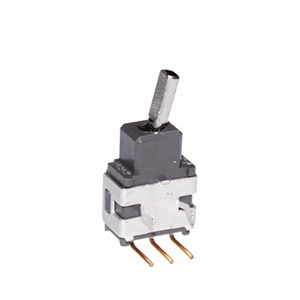

NKK Switches A13HH Toggle Switch
Subminiature toggle switch suitable for various electronic applications. Compact design allows for easy installation in limited space environments. Ideal for control panels and small device interfaces.
NKK Switches A13HH Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggle
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze with gold plating, brass with gold plating
- Environmental Data: -30°C to +85°C, 90-95% humidity for 240 hours, vibration 10-55Hz, 1.5mm amplitude, shock 50G
- PCB Processing: Wave soldering recommended, manual soldering, automated cleaning
- Standards & Certifications: Not tested for UL or CSA certification
- Physical Dimensions: Terminal spacing 2.54mm (0.100 inch), body size approximately 10.0mm or 6.3mm diameters for different variants
Buy the NKK Series A Toggle Switch: A13HH
Purchase the NKK Series A toggle switch A13HH online now to ensure reliable control in your electronic devices. Its compact, space-saving design fits easily into control panels and small spaces, offering excellent durability and long-term operation. Perfect for low-voltage applications, it provides consistent performance with a mechanical life of 100,000 operations and an electrical life of 50,000. Enjoy fast shipping, easy online ordering, and trusted quality for your delicate electronic solutions today.
Order your NKK Series A toggle switch A13HH today and give your electronics projects the dependable control solution they need.
Frequently Asked Questions
Where can I buy NKK Switches A13HH?
You can click on the BUY or RFQ button to purchase A13HH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A13HH?
You can download the A13HH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A13HH?
NKK Switches
