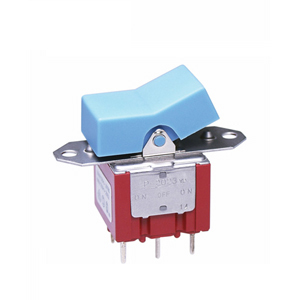

NKK Switches P2023YP Rocker Switch
The P2023YP is a standard-sized rocker switch designed for panel mounting in electronic applications. It offers reliable on/off control with high dielectric strength and corrosion-resistant stainless steel frame. The switch features epoxy sealed terminals to prevent contaminants entry, ensuring long-lasting durability. It complies with international standards such as EN 61058-1, UL9AV-0 flammability, and meets environmental testing requirements. Its robust construction makes it ideal for industrial control, appliances, and automation systems needing dependable switching performance.
NKK Switches P2023YP Rocker Switch Specifications:
- Current Rating: 10A at 125V AC or 6A at 250V AC
- Resistive Load: 4000W at 125V AC
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum at 500V DC
- Dielectric Strength: 2,000V AC between contacts for 1 minute, 4,000V AC between contacts and case for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Temperature Range: -10°C to +85°C (+14°F to +185°F)
- Materials: Stainless steel frame, diallyl phthalate resin UL94V-0 case/base, silver alloy contacts, epoxy sealed terminals
- Compliance: EN 61058-1 standard, UL, cULus, CSA recognized, VDE marked
- Mounting: Panel mounting
- Terminal Type: Solder lug, straight PC, quick connect
Buy the Buy NKK Series P Rocker Switch Part Number P2023YP Online
Purchase the NKK Series P rocker switch P2023YP online now for reliable on/off control in various electronic and industrial applications. Featuring epoxy sealed terminals and a corrosion-resistant stainless steel frame, it guarantees long-term durability and safety. Perfect for automation, control panels, and appliances, this switch meets international standards including EN 61058-1, UL, cULus, and CSA certifications. With a rated current of 10A at 125V AC and 6A at 250V AC, it offers excellent electrical performance and operational lifespan, ensuring your projects operate smoothly and safely.
Order your NKK Series P P2023YP rocker switch today and ensure your electronic projects receive dependable and long-lasting switching performance.
Frequently Asked Questions
Where can I buy NKK Switches P2023YP?
You can click on the BUY or RFQ button to purchase P2023YP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part P2023YP?
You can download the P2023YP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of P2023YP?
NKK Switches
