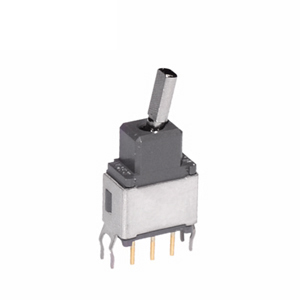

NKK Switches A18HB Subminiature Toggle Switch
A subminiature toggle switch designed for precise control in compact electronic applications. Suitable for various switching needs where space is limited.
NKK Switches A18HB Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394" toggle
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze with gold plating
- Environmental: -30°C to +85°C, 90-95% humidity for 240 hours, 50G shock resistance
- Soldering: Wave and manual soldering compatible, automated cleaning
Buy the NKK Series A A18HB: Subminiature Toggle Switch
Purchase the NKK A18HB subminiature toggle switch online today for reliable, space-efficient control with durable performance. Perfect for compact electronics, it offers exceptional electrical life and stability in a compact form factor. Easy to install with wave and manual soldering options, along with automated cleaning compatibility, ensuring optimal manufacturing efficiency. Ideal for applications demanding precise switching, this switch guarantees long-term durability, with high current handling, excellent dielectric strength, and a wide operating temperature range. Elevate your electronic designs with this high-quality toggle switch.
Buy NKK A18HB toggle switch now and experience unmatched reliability and space-saving control in electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches A18HB?
You can click on the BUY or RFQ button to purchase A18HB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A18HB?
You can download the A18HB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A18HB?
NKK Switches
