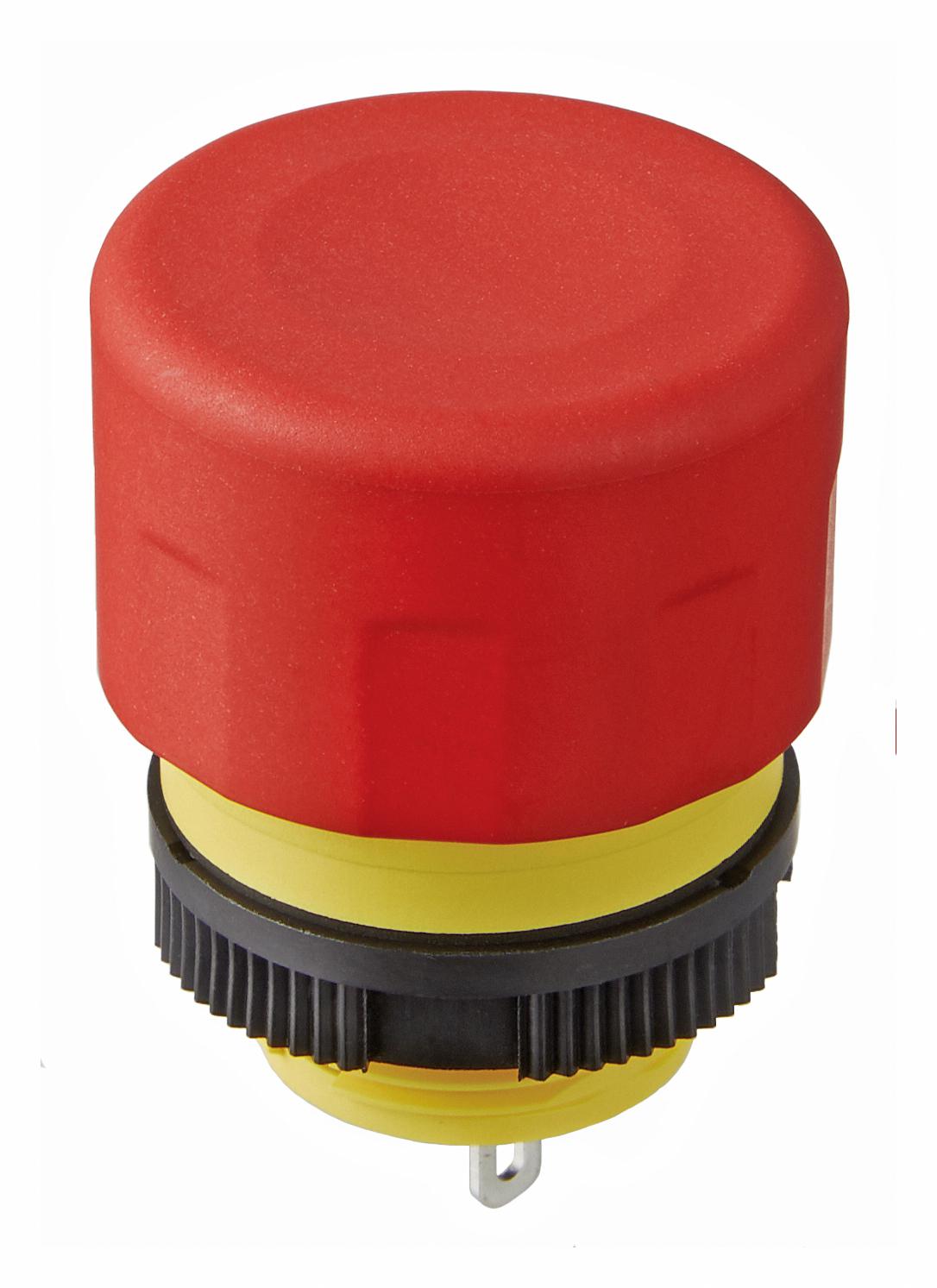

NKK Switches FF0116BACEEA01 Emergency Stop Switch
The FFO1 Series Low Profile Emergency Stop Switches are compact, IP65-rated devices designed for high-density panel layouts and reliable safety functions. Featuring a shortest behind panel depth of 13.6mm, these switches offer space-efficient installation. Equipped with a rugged sliding latch mechanism for safety, they support both pulling and twisting reset methods. The switches have gold over silver contacts rated at 0.5A @ 24V DC, with high durability against shock and vibration. Suitable for factory automation, control panels, and industrial safety applications, they comply with IEC standards and are easy to install with solder lug terminals.
NKK Switches FF0116BACEEA01 Emergency Stop Switch Specifications:
- Electrical Capacity: 0.5A @ 24V DC, Resistive Load: 36V DC, Impulse Withstand Voltage: 2.5kV, Contact Resistance: 50 milliohms max
- Insulation Resistance: 100 megohms min @ 500V DC, Mechanical Life: 100,000 operations, Electrical Life: 100,000 operations
- Operating Force: Push to lock 10.8N; Pull to reset 8.5N; Turn to reset 0.13N-m, Short Circuit Protection: gG10A, Overvoltage Category: II
- Materials: Actuator: Glass fiber reinforced PBT, Housing: Glass fiber reinforced polyamide, Contacts: Silver alloy copper with gold plating
- Operating Temperature: -45°C to +80°C, Vibration & Shock Resistance: Meets IP65 IEC 60529, Sealing: IP65, Certifications: IEC 60947-5-1, IEC 60947-5-5
Buy the NKK Switches FFO1 – Reliable Emergency Stop Switches for Industrial Applications
Secure your industrial safety systems with NKK Switches FFO1 emergency stop switches. Featuring a compact, low-profile design with IP65 sealing, these switches ensure high durability against vibration and shock. Easy to install with solder lug terminals and a locking latch mechanism, they support space-saving panel layouts. Suitable for factory automation, control panels, and safety interlocks, these switches meet IEC standards and are engineered for reliable performance. Order online now to protect your equipment with trusted safety components.
Buy NKK Switches FFO1 emergency stop switches now and experience unmatched safety, durability, and high-density installation capabilities for industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches FF0116BACEEA01?
You can click on the BUY or RFQ button to purchase FF0116BACEEA01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FF0116BACEEA01?
You can download the FF0116BACEEA01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FF0116BACEEA01?
NKK Switches
