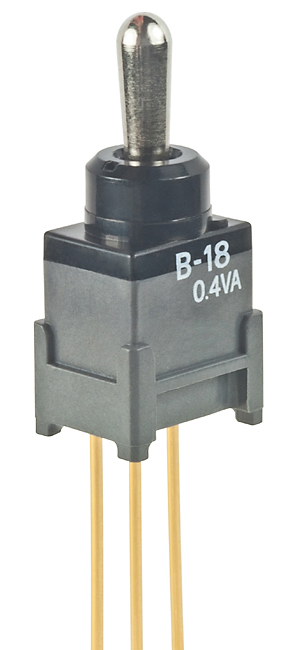

NKK Switches B18JW Miniature Toggle Switch
The B18JW is a compact, high-reliability toggle switch designed for space-constrained electronic applications, including logic-level circuits. It features a sealed body construction and an antistatic superstructure to prevent static discharge and contact contamination. With a switching capacity of 0.4VA @ 28V, it supports up to 100,000 operations. Constructed from nickel-plated brass, polyamide, and phosphor bronze with gold plating, this switch ensures durability and stable contact performance in low-voltage, low-current environments. Its small size makes it ideal for miniature electronic assemblies.
NKK Switches B18JW Miniature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for On-None-On
- Nominal Operating Force: 1.47N (long paddle), 2.72N (short paddle), 0.59N (L)
- Contact Timing: Nonshorting, break-before-make
- Materials & Finishes: Nickel-plated brass, carbon blended polyamide, nitrile butadiene rubber, glass fiber reinforced polyamide, phosphor bronze, copper alloy
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration & Shock: Meets MIL-STD-202 for vibrations and shocks, withstanding 50G acceleration testing
- Mounting Torque: 30-3.98 lb-in (for threaded bushings)
- Soldering and Cleaning: Wave soldering and automated cleaning compatible, follow recommended profiles
- Standards & Certifications: UL9AV-0, not UL or CSA recognized
Buy the NKK Series B Switch: Miniature Toggle Switch B18JW
Discover the reliable NKK Series B toggle switch B18JW, engineered for compact electronic systems. Its sealed body and antistatic features ensure contact stability and contaminant resistance, supporting high cycle durability with up to 100,000 operations. Made from durable materials, it performs efficiently in low-voltage environments, providing safe, consistent switching. Whether for PCB mounting or panel sealing, this high-quality switch offers easy installation and maintenance. Purchase online now to enhance your devices with dependable, space-efficient switching solutions that last.
Order your NKK Series B toggle switch B18JW today and give your electronic projects the dependable, space-saving switch performance they deserve.
Frequently Asked Questions
Where can I buy NKK Switches B18JW?
You can click on the BUY or RFQ button to purchase B18JW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B18JW?
You can download the B18JW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B18JW?
NKK Switches
