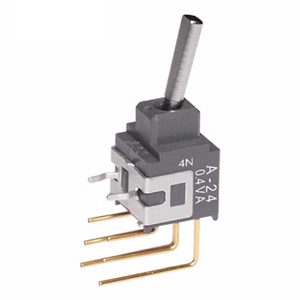

NKK Switches A24EV Subminiature Toggle Switch
A24EV subminiature toggle switch suitable for various electronic applications. Compact design allows for easy installation and reliable operation.
NKK Switches A24EV Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Force: 1.47N (momentary); 1.18N (maintained)
- Temperature Rating: -30°C to +85°C
- Humidity Resistance: 90-95% for 240 hours
- Soldering: Wave and manual soldering compatible
- Material: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze
- Dimensions: Compact size, terminal spacing 2.54 mm (0.100")
- Standards: Not UL recognized or CSA certified
Buy the NKK Series A Process Sealed Subminiature Toggle: A24EV
Enhance your electronic projects with the NKK A24EV subminiature toggle switch. Featuring sealed construction, space-saving design, and high durability, it ensures reliable performance in low-current logic circuit applications. Easy to install, solder, and clean, this switch is perfect for compact electronic assemblies requiring stable switching functions. Choose NKK's proven quality for your automation and control needs. Purchase online today and enjoy swift delivery, excellent build quality, and versatile application suitability.
Get NKK A24EV today—built for space-saving efficiency and reliable switching in electronic devices.
Frequently Asked Questions
Where can I buy NKK Switches A24EV?
You can click on the BUY or RFQ button to purchase A24EV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A24EV?
You can download the A24EV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A24EV?
NKK Switches
