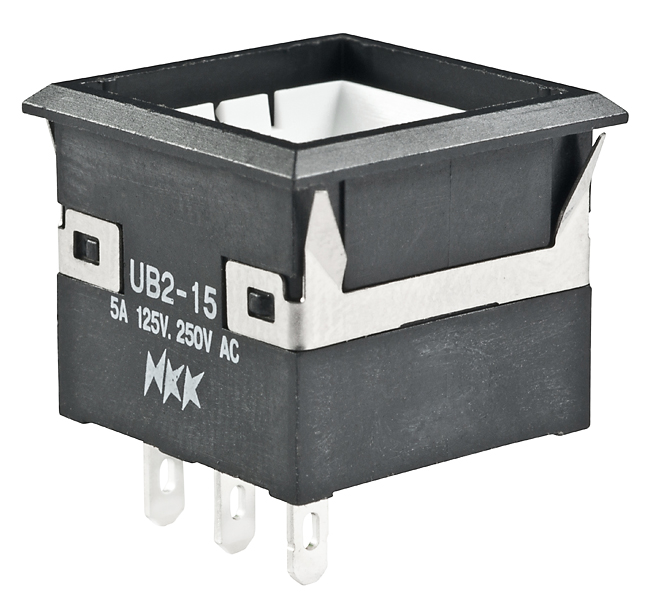

NKK Switches UB215KKW01N Illuminated Pushbutton Switch
This low-profile, illuminated pushbutton switch is designed for PCB mounting with solder terminals, offering tactile actuation and integrated LED lighting for visual indication. Ideal for electronic control panels, machine interfaces, and automation systems, it features quick-make/break contact mechanism, long electrical life, and complies with UL standards. Its compact design supports space-saving installations in industrial, commercial, and consumer electronics, providing reliable performance with easy installation, durable materials, and versatile LED options including super bright variants with alternating legends. Fully rated for resistive loads up to 5A at 125/250V AC and 0.4VA max for LED circuits, it ensures dependable operation in demanding environments.
NKK Switches UB215KKW01N Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 5A @ 125/250V AC; 0.4VA max LED circuit at 28V AC/DC
- Contact Resistance: 50 milliohms max for silver; 100 milliohms max for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min; 1,500V between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations min; Electrical Life: 200,000 operations min
- Nominal Operating Force: Single Pole: 1.90N; Double Pole: 2.55N
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total Travel 0.091” (2.3mm)
- Housing: Glass fiber reinforced polyamide UL94V-0; Contact Materials: Silver alloy or copper with gold plating
- Operating Temperature Range: -25°C to +50°C (Illuminated), -25°C to +70°C (Nonilluminated)
- Vibration & Shock: Vibration 10-55Hz, Shock 50G; Humidity: 90-95% for 240 hrs @ 40°C
- Soldering: Wave and manual profiles specified; UL recognized when ordered with marking and cap assembly
- Certifications: UL94V-0, UL recognition with UL marked versions, UL listed at 5A @ 125/250V AC
