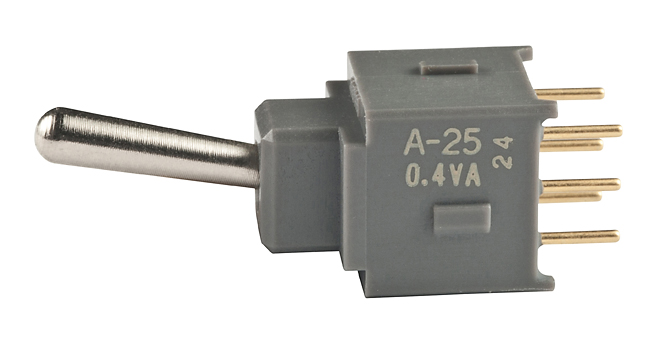

NKK Switches A25AP Subminiature Toggle Switch
A small subminiature toggle switch designed for precision electronic applications. Suitable for various control and switching functions in compact device assemblies.
NKK Switches A25AP Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC min for 1 min between contacts and case
- Mechanical Life: 100,000 operations min for certain circuits
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (momentary), 1.18N (maintained) for .394” toggles
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze with gold plating, brass with gold plating
- Temperature Range: -30°C through +85°C
- Humidity Test: 90-95% for 240 hours at 40°C
- Soldering: Wave and manual soldering recommended
- Certifications: Not tested for UL or CSA
- Body Construction: Sealed, subminiature size for space-saving, designed for logic-level circuits
Buy the Buy NKK Process Sealed Subminiature Toggle Part Number A25AP Online
Order the NKK A25AP subminiature toggle switch online today to enhance your electronic control panel. Its space-saving design, sealed body construction, and reliable contact mechanism ensure optimal performance in compact applications. Perfect for low-voltage, low-current circuits, this switch offers precise operation and durability. Whether for automation, instrumentation, or control systems, buying online guarantees quick delivery and authentic quality from authorized sources, ensuring your project’s success with top-tier components.
Buy NKK A25AP toggle switch now and experience unmatched reliability and space-efficient control suitable for precision electronic devices.
Frequently Asked Questions
Where can I buy NKK Switches A25AP?
You can click on the BUY or RFQ button to purchase A25AP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A25AP?
You can download the A25AP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A25AP?
NKK Switches
