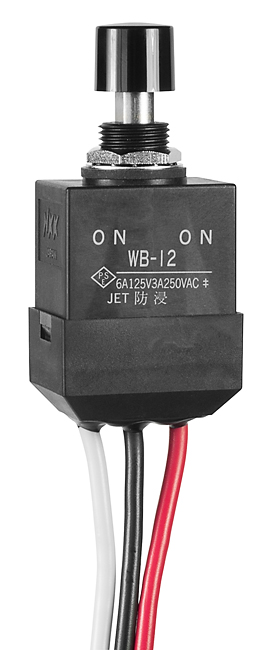

NKK Switches WB12LDA Sealed Pushbutton Switch
The environmentally sealed pushbutton switch provides durable, reliable operation in harsh conditions with IP67 and IP60 ratings. Constructed from heat-resistant resin, it features a specially designed contact mechanism for breaking light welds, minimal contact bounce, and is suitable for various industrial applications. It is available with solder lug, screw terminal, or wire lead options, ensuring versatility. The switch operates at 6A current capacity at 125V AC, with a mechanical life of at least 30,000 operations, and meets UL and CSA standards for safety and flammability. Its compact size and sealed construction make it ideal for demanding environments.
NKK Switches WB12LDA Sealed Pushbutton Switch Specifications:
- Electrical Capacity: 6A at 125V AC, 3A at 250V AC
- Contact Resistance: 30 milliohms maximum
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: Minimum 1,500V AC for 1 minute
- Mechanical Life: 30,000 operations minimum
- Materials: Brass with nickel plating, fiberglass reinforced polyamide outer case, melamine, silicone rubber, copper with silver plating, silver alloy with silver plating
- Operating Temperature Range: -20°C to +105°C
- Humidity Resistance: 90-95% for 96 hours @ 40°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm, 1 minute
- Shock Resistance: 50G acceleration, tested in 6 directions, 5 shocks each
- Mounting Torque: 1.5Nm
- Soldering Temperature & Time: Manual soldering, profile A
- Standards: UL94V-0 flammability, CSA recognized, IP67 front panel, IP60 behind panel
Buy the Buy Switches Environmental Sealed Pushbutton Part Number WB12LDA Online
Purchase the Sealed Pushbutton Switch today for dependable operation under tough conditions. Its IP67 rating ensures dust and water resistance, making it perfect for industrial control panels. With a robust construction from heat-resistant materials and a long mechanical lifespan of over 30,000 cycles, this switch guarantees durability and consistent performance. Whether you need solder lug, screw terminal, or wire lead options, ordering online provides quick delivery, easy installation, and a reliable component to enhance your machinery or control systems effectively.
Get Switches WB12LDA today—built for durability, environmental sealing, and reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches WB12LDA?
You can click on the BUY or RFQ button to purchase WB12LDA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part WB12LDA?
You can download the WB12LDA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of WB12LDA?
NKK Switches
