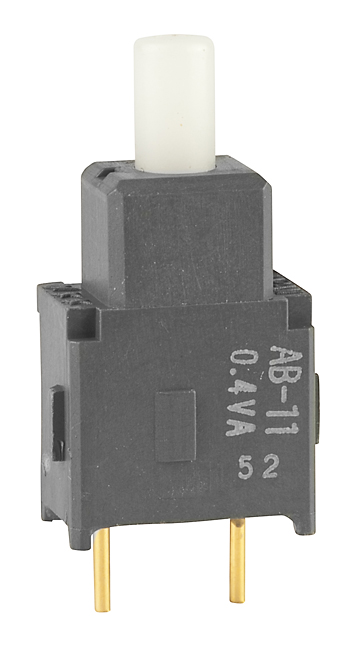

NKK Switches AB11BP Subminiature Pushbutton Switch
The AB11BP subminiature pushbutton switch is designed for compact electronic applications, offering reliable momentary and maintained contact switching. Its small size ensures easy PCB mounting and space-saving integration in logic-level, low-voltage circuits. It features a sealed body construction to prevent contact contamination, improved detent actuation with a smoother operation, and various terminal configurations, including straight, right-angle, and inline brackets. Made with durable polyamide and phosphor bronze contacts, it is suitable for low-current, low-voltage use in automation, control panels, and instrumentation. The switch complies with industry standards for environmental and mechanical durability.
NKK Switches AB11BP Subminiature Pushbutton Switch Specifications:
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megaohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 2.55N (break-before-make)
- Pretravel: 0.028 inch (0.7mm), Overtravel: 0.016 inch (0.4mm), Total Travel: 0.043 inch (1.1mm)
- Materials: Polyacetal plunger, glass fiber reinforced polyamide case, phosphor bronze contacts with gold plating, brass support brackets
- Environmental Ratings: Operating temperature -30°C to +85°C, humidity 90-95%, vibration and shock resistant
- Soldering: Wave and manual profile recommended, automated cleaning compatible
Buy the Buy NKK Switches Process Sealed Subminiature Pushbuttons AB11BP Online
Purchase the NKK AB11BP pushbutton switch online today to benefit from its compact size, sealed construction, reliable contact operation, and easy PCB mounting. Perfect for low-voltage, logic-level circuits in automation, instrumentation, and control systems. With thousands of mechanical and electrical cycles guaranteed, this switch ensures long-lasting performance. Its corrosion-resistant materials and environmental durability make it ideal for challenging conditions. Simplify installation and maintenance while enhancing device reliability by ordering this high-quality switch online now.
Order your NKK Series AB11BP compact sealed pushbutton today and ensure reliable, space-efficient switching for your low-voltage electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches AB11BP?
You can click on the BUY or RFQ button to purchase AB11BP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AB11BP?
You can download the AB11BP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AB11BP?
NKK Switches
