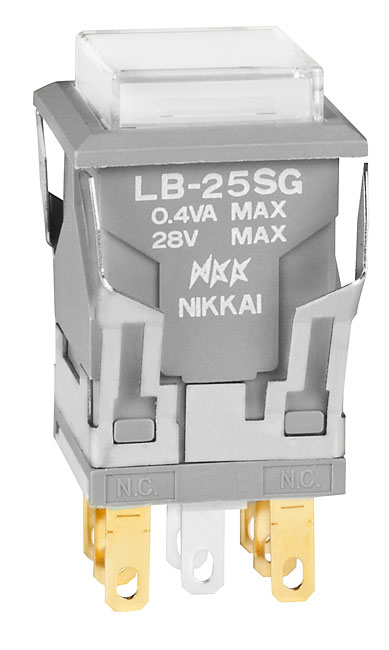

NKK Switches LB25SGG015F24JB Standard Illuminated Pushbutton Switch
The standard size illuminated pushbutton switch features snap-in mounting and a full surface illumination with front panel relamping. Offering bright, energy-efficient LEDs in white, green, blue, red, amber, and other colors, it provides tactile feedback, long electrical life, and a compact design suitable for industrial control panels. The switch housing is made of UL94V-0 rated polyamide with stainless steel clips for secure mounting. Available with various lens and LED options, it is IP65-rated and recognized by UL, cUL, and CSA standards, ideal for demanding environments needing reliable momentary or maintained circuit operation.
NKK Switches LB25SGG015F24JB Standard Illuminated Pushbutton Switch Specifications:
- Housing Material: UL94V-0 polyamide
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts and case for 1 min
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC max.
- Mechanical Life: 1,000,000 operations minimum
- Contact Material: Silver alloy or copper with gold plating
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total Travel 0.118” (3.0mm)
- Panel Seal: IP65 compliant, with gasket for secure sealing
- Mounting: Snap-in with stainless steel clips, panel thickness 0.039” to 0.157”
- LED Options: Bright, Super Bright, Single and Bicolor LEDs, various colors available
- Standards & Certifications: UL, cUL, CSA recognized and certified as applicable
Buy the NKK Switches LB25SGG015F24JB – Reliable Illuminated Pushbutton for Industrial Applications
Purchase the NKK Switches LB25SGG015F24JB online today and ensure your control systems are equipped with durable, bright, and reliable illuminated pushbuttons. Designed for easy snap-in installation, this switch offers full surface illumination with front panel relamping, long electrical lifespan, and IP65 sealing standards. Choose from a variety of LED colors and lens options to match your application. Enjoy fast delivery and guaranteed quality for your industrial projects. Upgrade your control panel with this high-performance switch now.
Buy NKK Switches LB25SGG015F24JB now and experience unmatched reliability and performance in industrial control panels.
