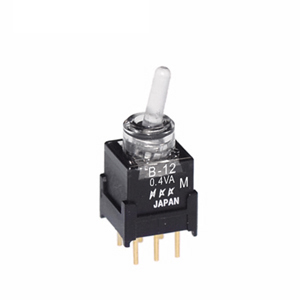

NKK Switches B12JJPF Illuminated Toggle Switch
This subminiature illuminated toggle switch is designed for PCB mounting, offering high reliability and clear illumination. Ideal for electronic devices, it features a sealed body, epoxy sealed terminals, and an award-winning contact mechanism for smooth actuation and contact stability. The switch comes with LED options in green, red, or amber, and a bi-color red/green option. It supports resistive loads up to 0.4VA at 28V, with a mechanical life of 100,000 operations. Its compact size and robust construction make it suitable for applications requiring precise and durable switching solutions.
NKK Switches B12JJPF Illuminated Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC, 20mV ~ 28V
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations
- Electrical Life: 50,000 operations
- Nominal Operating Force: 1.18N
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Operating Temperature Range: -25°C to +55°C
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz with peak-to-peak 1.5mm
- Shock: 50G acceleration
- Soldering: Wave and manual soldering recommended in Profile A
- Cleaning: Automated alcohol-based cleaning, max 5 minutes; avoid high-purity alcohol or organics
- LED Colors: Red, Amber, Green, Red/Green bicolor
- LED Forward Voltage: 1.9V - 3.4V, Forward Peak Current: 20mA - 30mA
- Terminal Spacing: 2.54mm (100 mil)
- Sealed body for contamination prevention and ease of automated manufacturing
