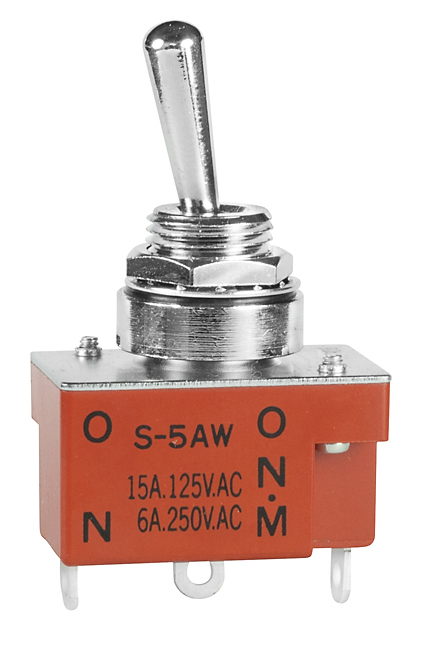

NKK Switches S5AW Medium Capacity Toggle Switch
This medium capacity standard size toggle switch offers reliable performance for switching applications with low to high load ratings. Designed for industrial and control environments, it features resistive and inductive load capacities, certifications for safety, and robust materials including brass, phenolic resin, and zinc plating. The switch is available with various contact configurations such as single pole, double pole, SPST, SPDT, and DPDT, with options for quick connect, solder lug, and panel seal. It operates within a temperature range of -10°C to +70°C, meeting IP67 sealing standards for splashproof models, and includes hardware for easy installation and durability.
NKK Switches S5AW Medium Capacity Toggle Switch Specifications:
- Electrical Capacity (Resistive & Inductive Load): 15A 125V, 6A 250V, 20A 30V, 8A 125V, 25A 125V, 20A 250V, 8A 30V
- Materials: Brass with chrome plating, phenolic resin, steel with zinc plating, copper with silver plating
- Mechanical Life: 30,000 to 50,000 operations
- Operating Temp Range: -10°C to +70°C, splashproof models meet IP67 standard
- Dimensions: Panel thickness up to 4.0mm, typical terminal sizes 2-1.5mm
- Soldering Time & Temperature: Manual soldering, profile A
- Standards & Certifications: UL Recognized, CSA Certified
- Mounting Torque: 1.47Nm to 2.94Nm (13 to 26 inch-pounds)
- Sealing: Splashproof & lever lock models IP67
Buy the NKK Series S Medium Capacity Toggle Switch: S5AW
Purchase the NKK Series S S5AW toggle switch online today and enjoy high-quality switching performance across various load conditions. Engineered for durability, safety, and ease of installation, this switch features multiple configurations, robust materials, and certifications for industrial use. Its splashproof design with IP67 sealing ensures reliable operation in harsh environments. Ideal for control panels, machinery, and automation systems, this toggle switch is your trusted component for dependable and efficient switching solutions. Order now and enhance your system's reliability!
Buy NKK Series S S5AW toggle switch now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy NKK Switches S5AW?
You can click on the BUY or RFQ button to purchase S5AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S5AW?
You can download the S5AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S5AW?
NKK Switches
