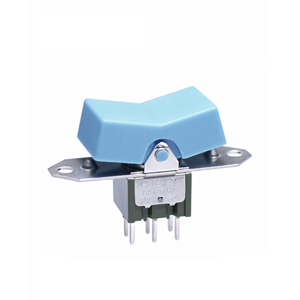

NKK Switches M2022TYW03 Miniature Rocker Switch
A miniature rocker switch with multi-function capabilities, suitable for various electronic applications. Compact and reliable, designed for easy installation and operation.
NKK Switches M2022TYW03 Miniature Rocker Switch Specifications:
- Electrical Capacity (Resistive Load): Power Level 6A @ 125V AC, 3A @ 250V AC; Logic Level 0.4VA max @ 28V AC/DC
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min; 1,500V AC contacts to case for 1 min
- Mechanical Life: 50,000 operations minimum for gold, silver, and mixed ratings
- Electrical Life: 25,000 to 50,000 operations depending on material
- Angle of Throw: 25°
- Materials & Finishes: Actuator clip & mounting frame stainless steel; Body case diallyl phthalate (UL94V-0); Contactor material phosphor bronze with silver or gold plating; Terminals various metal plating options
- Environmental Data: Operating Temp Range -30°C to +85°C; Humidity 90-95% for 96 hours @ 40°C; Vibration 10-55Hz, Shock 50G
- Processing: Wave soldering and manual soldering profiles specified; Hand cleaning recommended with alcohol-based solutions
- Standards & Certifications: UL Recognized; CSA Certified; UL Flammability UL94V-0
Buy the NKK Series M Miniature Rocker Switch: M2022TYW03
Purchase the NKK Series M Miniature Rocker Switch M2022TYW03 online today and benefit from fast shipping, trusted quality, and excellent performance. Ideal for precise electronic control and automation tasks, this compact, durable switch features multi-function capabilities, easy mounting options, and reliable operation. Perfect for various applications, it ensures seamless switching with long mechanical and electrical life. Order now to enhance your electronic projects with a high-quality, dependable control component that guarantees safety and efficiency.
Buy NKK Series M Miniature Rocker Switch M2022TYW03 now and experience unmatched reliability and performance in electronic control solutions.
