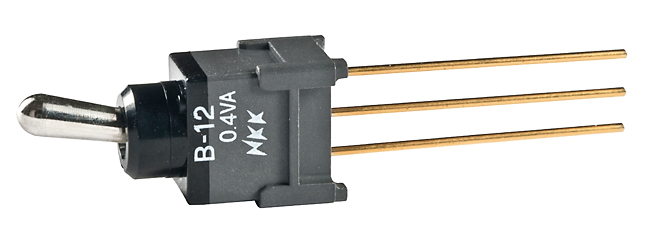

NKK Switches B12JW Subminiature Toggle Switch
This is a compact, highly reliable subminiature toggle switch suitable for electronic and electrical applications. Its space-saving design makes it ideal for limited space projects, while the epoxy sealed terminals ensure protection against contact contamination. Designed for low-voltage, low-current logic-level circuits, it offers smooth detent actuation, increased stability, and unparalleled reliability. It features a sealed body construction for easy soldering and cleaning, and meets IP65 standards with optional panel seal mounting. It supports multiple pole and circuit configurations, making it perfect for space-constrained automation and control systems.
NKK Switches B12JW Subminiature Toggle Switch Specifications:
- Size: Subminiature, space-saving design
- Electrical Capacity: 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min at 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (long paddle) or 2.72N (short paddle)
- Contact Type: Nonshorting (break-before-make)
- Operating Temperature Range: -30°C to +85°C
- Vibration: 10-55Hz, 1.5mm amplitude
- Shock: 50G acceleration
- Mounting: Panel seal mounting with optional threaded gasket
- Bushing: 6mm diameter, IP65 compliant
- Standards: UL9AV-0 (not tested for UL or CSA certification)
- Materials: Nickel-plated brass, polyamide, zinc alloy, Nitrile rubber
- Soldering: Wave and manual soldering compatible with Profile A
- Cleaning: Automated cleaning compatible
Buy the NKK Series B Toggle: B12JW
Purchase the NKK Series B subminiature toggle switch online today and enjoy easy integration into your electronic systems. Its sealed body design prevents contact contamination, ensuring long-lasting performance. Suitable for low-voltage, low-current circuits, this switch offers smooth actuation and high durability, making it ideal for space-constrained applications. With a variety of configurations, optional panel seal mounting, and compatibility with automated soldering and cleaning methods, it is the perfect choice for reliable, efficient switching in control systems and electronic devices.
Buy NKK Series B toggle switch B12JW now and experience unmatched reliability and space-saving performance in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches B12JW?
You can click on the BUY or RFQ button to purchase B12JW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B12JW?
You can download the B12JW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B12JW?
NKK Switches
