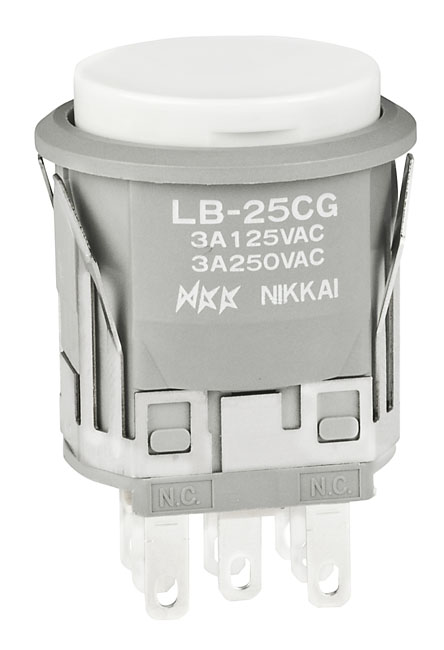

NKK Switches LB25CGW01B Illuminated Pushbutton Switch
This standard size illuminated pushbutton switch features snap-in mounting for quick installation and reliable operation. Equipped with LED illumination options, the switch offers durable construction with polycarbonate caps and stainless steel clips, ensuring long-lasting performance in control and automation applications. It includes various LED colors, resistor options, and lens styles for customizable signaling. The switch is suitable for panel mounting with certifications for electrical safety and environmental resilience, making it ideal for industrial control panels, machinery, and electronic equipment demanding bright illumination and robust design.
NKK Switches LB25CGW01B Illuminated Pushbutton Switch Specifications:
- Housing: Polycarbonate, Glossy Finish
- Mounting: Snap-in
- Cap/Lens: Clear or colored filters, polycarbonate
- LED Options: Bright, Super Bright, with resistor or resistorless
- LED Colors: Red, Amber, Green, Blue, White, Clear
- Electrical Capacity: 3A at 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum at 500V DC
- Dielectric Strength: 1000V AC between contacts, 1500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 4.0 N
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total travel 3.0mm
- Operating Temperature Range: -25°C to +50°C (Illuminated), -25°C to +70°C (Non-illuminated)
- Materials: Housing polycarbonate, clips stainless steel, contacts silver or gold plated
- Certifications: UL Recognized, CSA Certified, IEC 60529 IP65 panel seal when equipped
Buy the NKK LB25CGW01B – Reliable Control Switches for Industrial Applications
Enhance your control panels with this reliable illuminated pushbutton switch designed for durability and brightness. Easy snap-in mounting, LED indicator options, and robust construction make it ideal for industrial environments. With certifications and environmental resilience, this switch ensures long-lasting performance, safe operation, and customizable signal indication for machinery and automation projects. Purchase online today to benefit from quick delivery and proven switch quality for your control and automation needs.
Order your NKK Series LB25CGW01B illuminated pushbutton today and ensure your control panels get the dependable performance they deserve.
Frequently Asked Questions
Where can I buy NKK Switches LB25CGW01B?
You can click on the BUY or RFQ button to purchase LB25CGW01B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25CGW01B?
You can download the LB25CGW01B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25CGW01B?
NKK Switches
