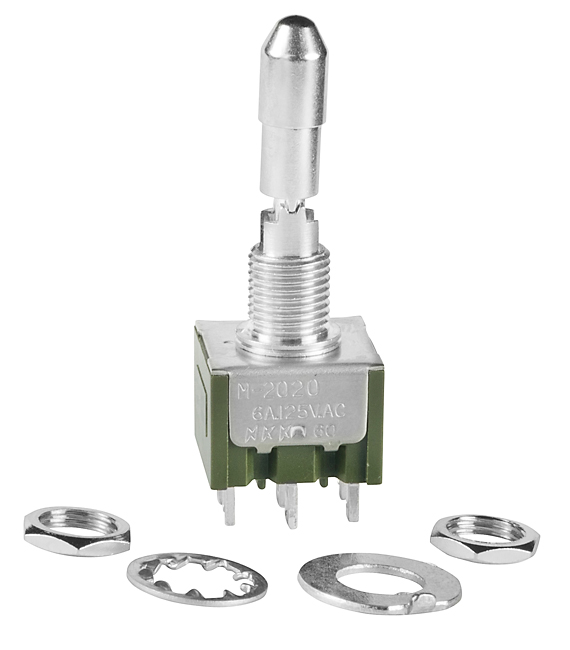

NKK Switches M2024LL1W01 Miniature Toggle Switch
This is a miniature toggle switch with multiple functions, designed for compact electronic applications. It provides reliable switching performance in a small form factor, suitable for various control and automation systems.
NKK Switches M2024LL1W01 Miniature Toggle Switch Specifications:
- Poles & Circuits: SPST, DPST, DPDT, 3PDT, 4PDT models available
- Switching Voltage: 125V AC, 250V AC, 28V DC
- Current Rating: 6A @ 125V AC, 3A @ 250V AC, 0.4VA max @ 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: ≥ 1000 megohms @ 500V DC
- Dielectric Strength: ≥ 1000V AC between contacts, ≥ 1500V AC between contacts and case
- Mechanical Life: Minimum 100,000 operations
- Electrical Life: 50,000 to 100,000 operations depending on model
- Angle of Throw: 25°
- Case Material: Polycarbonate with UL 94V-0 rating
- Bushing Material: Brass with chrome plating or nickel plating
- Operating Temperature Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz with 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Sealing: Splashproof options IP67
- Mounting Torque: 3.0Nm or 1.5Nm depending on bushing size
- Soldering: Wave or manual, per profile specifications
- Standards: UL Recognized, CSA Certified
