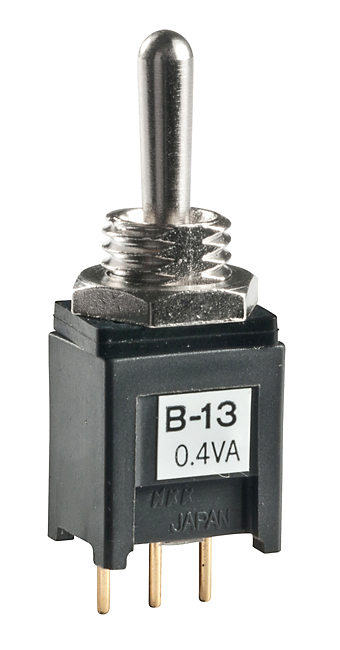

NKK Switches B13A1P PCB Toggle Switch
Subminiature toggle switch suitable for printed circuit board (PCB) mounting. Compact, sealed body prevents contamination, and features an antistatic superstructure for static discharge protection. Designed for logic-level circuits, it offers high reliability, smooth detent actuation, and increased contact stability. With optional panel seal mounting, it is ideal for space-constrained electronic applications requiring low-voltage, low-current switching solutions. The switch’s sealed construction and epoxy terminals facilitate soldering and cleaning, making it optimal for precise and maintenance-free electronic systems.
NKK Switches B13A1P PCB Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC, 1 minute minimum
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90~95% for 96 hours @ 40°C
- Vibration: 10~55Hz, amplitude 1.5mm for 1 minute in 3 directions
- Shock: 50G acceleration
- Mounting Torque: 30~.ASNm (for threaded bushing)
- Soldering: Wave and manual soldering recommended
- Case/Body Material: Glass fiber reinforced polyamide
- Bushing: Nickel plated brass or zinc alloy
- Contact Material: Tin plated phosphor bronze
- Temperature Rating: -30°C to +85°C
- Standards & Certifications: UL9AV-0
Buy the Buy NKK Switches Process Sealed Subminiature Antistatic Toggles Part Number B13A1P Online
Shop online now for the NKK PCB toggle switch B13A1P, featuring sealed construction, static discharge protection, and low-voltage reliability. Perfect for precise electronic circuits, this compact switch ensures durability, easy soldering, and maintenance-free operation. Ideal for space-limited designs, its epoxy terminals lock out flux and contaminants. Enhance your electronic assembly with a switch that offers high contact stability, smooth actuation, and compliance with industry standards. Get yours today and experience dependable, space-saving switching solutions!
Order your NKK SeriesB B13A1P toggle switch today and guarantee reliable switching performance in your space-constrained electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches B13A1P?
You can click on the BUY or RFQ button to purchase B13A1P from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B13A1P?
You can download the B13A1P datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B13A1P?
NKK Switches
