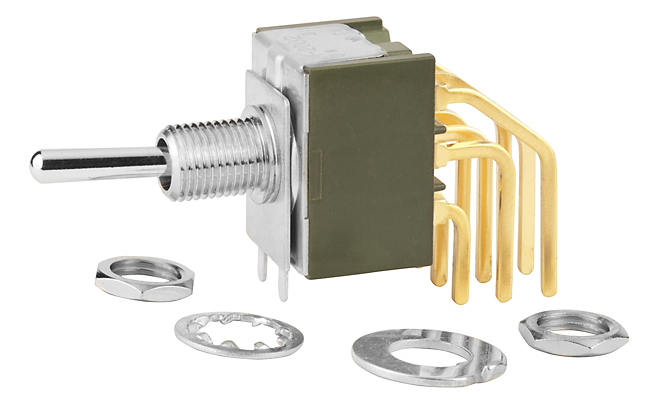

NKK Switches M2032SS1G30 Miniature Toggle Switch
Miniature toggle switch with multi-function capabilities, designed for precise control in electronic applications. This series offers high insulation barriers, antirotation design, and robust construction suitable for multiple circuit configurations, including SPDT, DPST, and DPDT. It features durable materials with chrome plating, epoxy sealed terminals for protection against contaminants, and options for locking levers and various terminal types. Rated for 6A at 125V AC and 0.4VA at 28V DC, it’s ideal for space-constrained, reliable switching needs in automation, instrumentation, and control systems.
NKK Switches M2032SS1G30 Miniature Toggle Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 0.4VA max @ 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum; 50,000 for certain models
- Electrical Life: 25,000 operations for silver, 50,000 for gold
- Angle of Throw: 25°
- Materials: Brass with chrome plating, stainless steel case, epoxy sealed terminals, diallyl phthalate case UL94V-0
- Operating Temperature: -30°C to +85°C
- Vibration & Shock: 10-55Hz with 1.5mm amplitude; 50G acceleration
- Sealing: Splashproof bushing options IP67 compliant
- Mounting Torque: 3.0Nm for large bushing, 1.5Nm or 0.7Nm for others
- Soldering & Cleaning: Wave and manual soldering; hand clean with alcohol
- Certifications: Recognized by UL, CSA, certified for specific models
Buy the Buy NKK Switches Series M Miniature Toggle Part Number M2032SS1G30 Online
Enhance your electronic and control systems with the reliable NKK Series M miniature toggle switch. Perfect for space-constrained applications, it features epoxy sealed terminals for protection against contaminants and high durability rated for up to 100,000 operations. Its high insulation barriers, corrosion-resistant materials, and compliance with safety standards make it ideal for automation, instrumentation, and equipment control. Order online now to ensure quick delivery and the trusted performance that meets your precise control requirements.
Get NKK Switches Series M M2032SS1G30 today—crafted for precise switching and enduring reliability in electronic controls.
Frequently Asked Questions
Where can I buy NKK Switches M2032SS1G30?
You can click on the BUY or RFQ button to purchase M2032SS1G30 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2032SS1G30?
You can download the M2032SS1G30 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2032SS1G30?
NKK Switches
