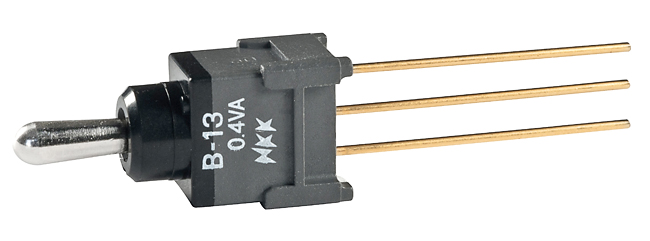

NKK Switches B13JW Miniature Toggle Switch
Subminiature toggle switch suitable for use in various electronic applications. Compact, sealed body construction prevents contact contamination, making it ideal for space-constrained, low-voltage, low-current, logic-level circuits. Features include antistatic superstructure to prevent static discharge, optional locking lever, and panel seal mounting meeting IP65 standards. Designed with award-winning STC contact mechanism for smooth actuation, increased contact stability, and high reliability. Suitable for PCB mounting with optional brackets, it offers high durability, environmental resistance, and ease of soldering and cleaning, ideal for precise control in miniature electronic devices.
NKK Switches B13JW Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations (standard circuits)
- Nominal Operating Force: 1.47N (long paddle), 2.72N (short paddle), 0.59N (L model)
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Nickel plated brass, carbon blended polyamide, nitrile butadiene rubber, glass fiber reinforced polyamide, tin plated phosphor bronze, gold plated copper alloy
- Operating Temperature Range: -30°C to +85°C
- Environmental: 90-95% humidity for 96 hours, vibration testing 10-55Hz with peak-to-peak amplitude of 1.5mm, shock 50G
- Installation: Mounting torque varies, supported with optional brackets for PCB mounting
- Soldering: Wave and manual soldering recommended, automated cleaning supported
- Standards & Certifications: UL9AV-0, designed for low-voltage, low-current logic circuits, static discharge protected, designed for ease of soldering and cleaning
Buy the Buy Toggle Switches Process Sealed Subminiature Antistatic Toggle Part Number B13JW Online
Discover the high-quality NKK miniature toggle switch B13JW, featuring sealed construction, static discharge protection, and reliable performance for electronic projects. Ideal for PCB mounting, this compact switch offers high durability, easy soldering, and compliance with IP65 standards. Its award-winning contact mechanism ensures smooth operation, increased contact stability, and long lifespan, making it suitable for low-voltage, low-current logic applications. Order online today and enhance your electronic devices with a dependable, space-saving switching solution that guarantees precision and safety in demanding environments.
Buy NKK toggle switches B13JW now and experience unmatched reliability and performance in space-constrained electronic applications.
