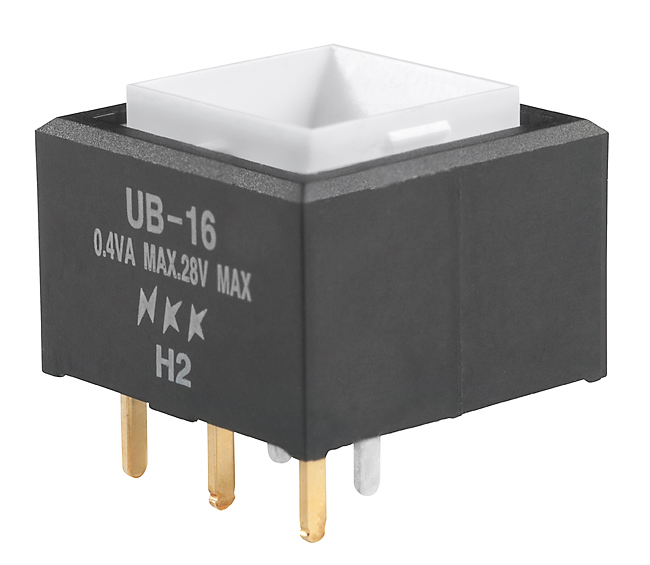

NKK Switches UB16SKG036F Illuminated Pushbutton
A low-profile, illuminated pushbutton switch suitable for PCB mounting and soldering applications. Designed for reliable operation in compact electronic assemblies.
NKK Switches UB16SKG036F Illuminated Pushbutton Specifications:
- Poles & Circuits: SPDT
- Operating Temperature Range: -25°C to +50°C (illuminated), -20°C to +70°C (non-illuminated)
- Electrical Capacity: 5A at 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: Silver: 50 milliohms max; Gold: 100 milliohms max
- Insulation Resistance: 200 MΩ minimum at 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts and case for 1 min
- Mechanical Life: 1,000,000 operations (momentary), 200,000 operations (alternate)
- Nominal Operating Force: 1.9N (single pole), 2.55N (double pole)
- Travel: Total 2.3mm (pretravel 1.7mm, overtravel 0.6mm)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Lighting: Bright LED, colors including red, amber, green, white, blue
- LED Specifications: Forward voltage 1.85-3.2V, Peak current 25-30mA
- Soldering: Wave, manual profiles specified
- Certifications: UL Recognized, CSA Certified
Buy the Buy NKK Series UB Part Number UB16SKG036F Online
Discover the convenience of purchasing the NKK Series UB illuminated pushbutton switch online. Its compact design and reliable operation make it perfect for space-constrained electronic assemblies, automation, and control panels. With built-in LED illumination available in multiple colors, it offers visual feedback for enhanced operation. Easy to mount on PCB with soldering capabilities, ensuring durable connections. Order now to ensure your projects incorporate high-quality, professional-grade switches suitable for various industrial and consumer applications.
Order your NKK Series UB16SKG036F illuminated pushbutton today and enhance your electronic projects with dependable, space-saving control switches.
Frequently Asked Questions
Where can I buy NKK Switches UB16SKG036F?
You can click on the BUY or RFQ button to purchase UB16SKG036F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16SKG036F?
You can download the UB16SKG036F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16SKG036F?
NKK Switches
