NKK Switches LB25CKW01C Illuminated Pushbutton
The standard size illuminated pushbutton switch features snap-in mounting for versatile electronic applications, offering bright LED illumination, durable construction, and panel sealing capabilities. It supports various LED colors and configurations, including spot illumination options, and is certified for safety standards. The switch includes multiple lens and cap options, with easy lamp replacement and mounting accessories. Designed for long electrical life and responsive operation, it's ideal for control panels requiring reliable, high-quality illumination and switch performance.
NKK Switches LB25CKW01C Illuminated Pushbutton Specifications:
- Poles & Circuits: SPDT, DPDT, ON-ON, Latchdown
- Rated Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC between contacts, 1500V AC between contacts & case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Pretravel & Overtravel: 0.059” (1.5mm), Total Travel: 0.118” (3.0mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Switch Terminals: Silver alloy or copper with gold plating
- Mounting: Snap-in with stainless steel clips
- Panel Seal: Meets IP65 (IEC60529)
- Certifications: UL Recognized, CSA Certified (with marking), UL recognized housing & base

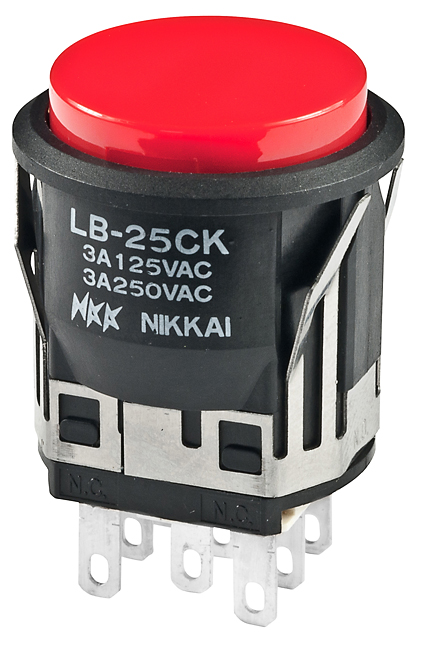

Buy the Buy NKK Series LB Standard Size Pushbuttons Part Number LB25CKW01C Online
Purchase the NKK LB25CKW01C illuminated pushbutton switch online for dependable control operations. Featuring snap-in mounting, bright LED illumination, multiple lens options, and panel sealing, it ensures long electrical life and responsive actuation. Suitable for various electronic applications, this switch supports easy lamp replacement, certifications for safety standards, and durable housing materials. Order today to enhance your control panel with a reliable, high-quality illuminated pushbutton designed for industrial and automation environments.
Get NKK LB25CKW01C today—designed for long-lasting durability and reliable illumination in control panels.
Frequently Asked Questions
Where can I buy NKK Switches LB25CKW01C?
You can click on the BUY or RFQ button to purchase LB25CKW01C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25CKW01C?
You can download the LB25CKW01C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25CKW01C?
NKK Switches
